commSupportPackageCheck('BLUETOOTH');

% The number of BLE Slaves in connection with the Master
slavesCount = 1;

% Create the BLE Master device capable of connecting with "slavesCount"
% number of Slaves
master = helperBLEDeviceModel('Role','Master', ...
                              'SlavesCount',slavesCount);

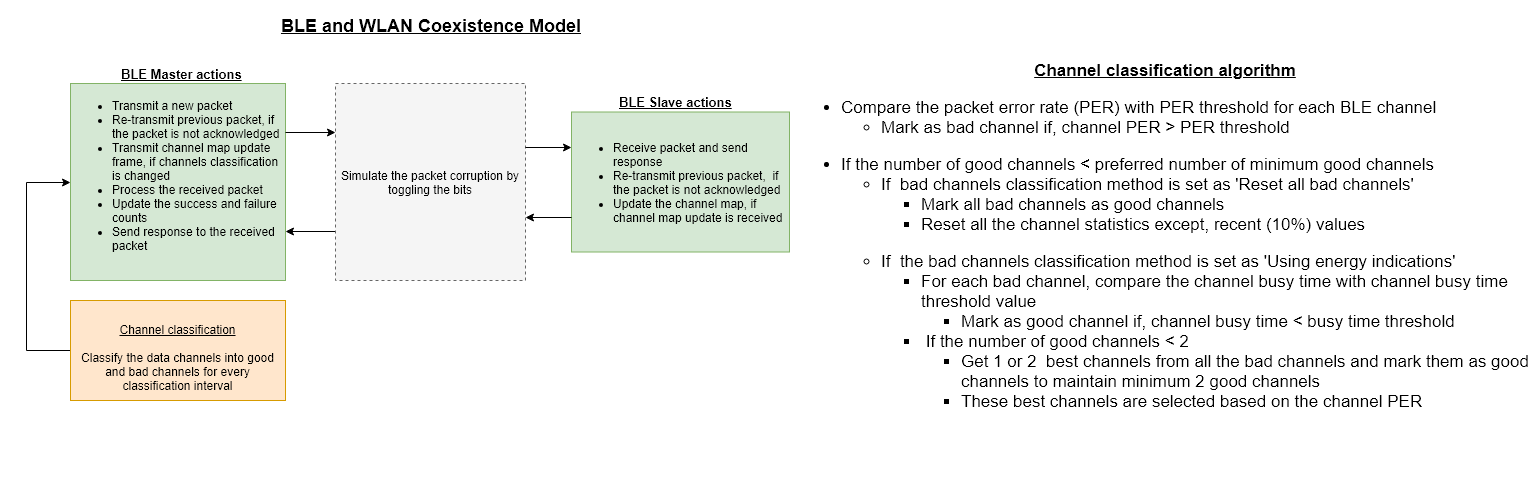

% Initialize the channel classification parameters to classify the BLE
% channels into good or bad channels.
% PERThreshold:                 Packet error rate (PER) threshold value
% ClassificationInterval:       Periodicity of channel classification
% RxStatusCount:                Maximum number of received packets status
% MinRxCountToClassify:         Minimum number of received packets status
% BadChannelClassificationMethod: Method for bad channels classification
% PreferredMinimumGoodChannels: Preferred number of good channels
channelClassification = helperBLEChannelClassification(...
                        'PERThreshold',60, ...
                        'ClassificationInterval',150, ...
                        'RxStatusCount',50, ...
                        'MinRxCountToClassify',4, ...
                        'BadChannelClassificationMethod','Using energy detections', ...
                        'PreferredMinimumGoodChannels',20);

% Assign channel classification parameters to the Master device
master.ChannelClassification = channelClassification;

% Initialize "slavesCount" number of Slaves
slaves(1, slavesCount) = helperBLEDeviceModel;

% Create "slavesCount" number of Slave devices
for idx = 1:slavesCount
    slaves(idx) = helperBLEDeviceModel('Role','Slave');
end

% Create "slavesCount" connections between the "Master" and "Slaves". This
% function creates a Link Layer connection by sharing the common connection
% parameters such as connection interval, access address for each
% Master-Slave connection pair.
[master, slaves] = helperBLECreateLLConnection(master, slaves);

% Set number of WLAN networks interfering with the BLE network
wlanNetworksCount = 6;

% Set of WLAN channels (in the range [1, 14]) used by each WLAN network
wlanChannels = [1, 5, 6, 12, 9, 8];
% Probability of collisions of each WLAN network with BLE network
collisionProbabilities = [0.35, 0.48, 0.26, 0.60, 0.28, 0.34];
% Start and end times (in milliseconds) of transmission in each WLAN
% network
wlanInterferencePeriod = [0, inf; ...
    0, inf; ...
    0, 2100; ...
    0, inf; ...
    200, 2800; ...
    150, inf];

% Create a configuration object for WLAN traffic
wlanTrafficConfig = helperBLEWLANStatisticalTrafficConfig();

% Configure WLAN traffic with the specified WLAN network parameters
wlanTraffic(wlanTrafficConfig, wlanNetworksCount, wlanChannels, ...
    collisionProbabilities, wlanInterferencePeriod);

% Initialize simulation parameters

% Reset the random number generator seed
sprev = rng('default');

% To enable the visualization of BLE coexistence with WLAN, set the
% "enableVisualization" to true. To disable the visualization of BLE
% coexistence with WLAN set the "enableVisualization" to false.
enableVisualization = true;

% To enable the visualization of channel hopping sequence, set the
% "enableHoppingVisualization" to true. To disable the visualization of
% channel hopping sequence, set the "enableHoppingVisualization" to false.
% If the "enableVisualization" is set to false, then
% "enableHoppingVisualization" is not considered.
enableHoppingVisualization = true;

% Total simulation time in milliseconds
simulationTime = 4000;

% One step time is considered as 0.025 milliseconds. All the timing
% parameters (connection interval, scan interval, advertising interval,
% etc.) in BLE specification are multiple of 0.625 milliseconds. The
% maximum packet size used in this example is 33 octets (264 bits). The
% packet transmission time in different PHY modes are: 0.264 milliseconds
% (in LE1M), 0.132 milliseconds (in LE2M), 0.528 milliseconds (in LE500K)
% and 1.056 milliseconds (in LE125K). Therefore, the step time is
% considered as 0.025 milliseconds (0.625 is multiple of 0.025) to achieve
% a trade-off between the simulation time and accuracy.
timeStep = 0.025;

% Create structure for an empty packet to initialize the output of Master
% and Slaves
% LLPDU:        Generated Link Layer Protocol Data Unit (PDU) appended with
%               Cyclic Redundancy Check (CRC)
% RateIndex:    String representing the rate at which the packet will be
%               transmitted. It contains one of 'LE2M' | 'LE1M' | 'LE500K'
%               | 'LE125K'
% AccessAddress:Unique address for each Master-Slave connection pair
% ChannelIndex: Channel on which the packet is transmitted
emptyPacket = struct('LLPDU',[], ...
                     'AccessAddress','', ...
                     'RateIndex','', ...
                     'ChannelIndex',-1);

% Initialize the Slave output
slaveOutput = emptyPacket;

% Preallocate the buffers to store the Slave outputs
slaveOutputs = cell(1, slavesCount);

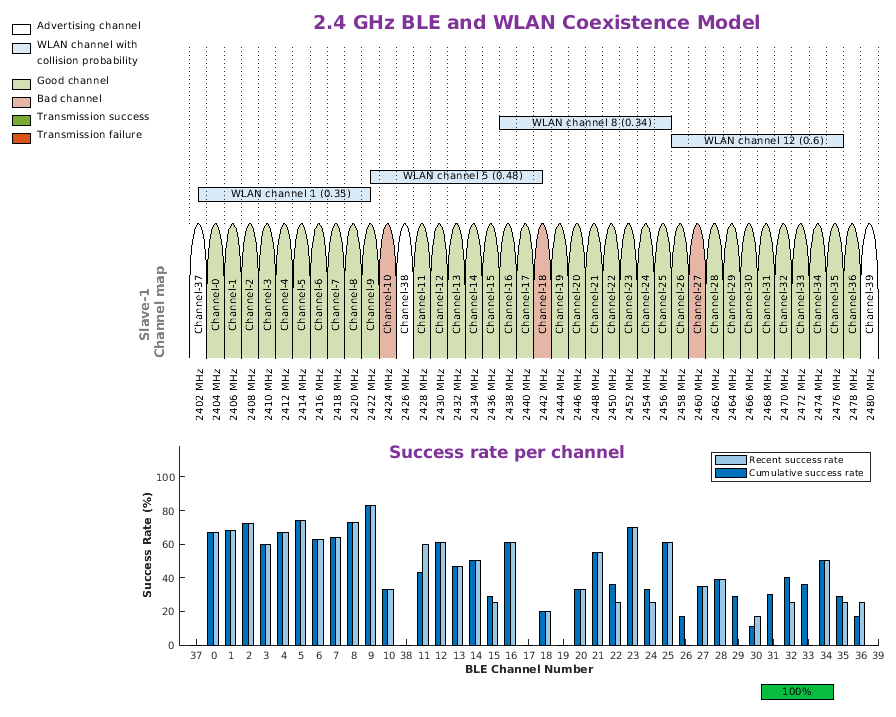

% Initialize figures for visualization of coexistence model for each Slave.
% This visualization shows the WLAN channels along with their collision
% probabilities and also shows the channel hopping for the communication
% between BLE Master and Slave devices. It also shows the status (good or
% bad) of each BLE channel along with the success rate in the respective
% channel.
coexistenceModel = ...
    helperBLEVisualizeCoexistence(...
    'Action','Initialize', ...
    'SlaveCount',slavesCount, ...
    'WLANChannelList',wlanChannels, ...
    'PERThreshold',master.ChannelClassification.PERThreshold, ...
    'ClassificationInterval',master.ChannelClassification.ClassificationInterval, ...
    'ChannelBusyCountThreshold',master.ChannelClassification.ChannelBusyCountThreshold, ...
    'PreferredMinimumGoodChannels',master.ChannelClassification.PreferredMinimumGoodChannels, ...
    'ConnectionInterval',master.LLConnectionConfigs(1).ConnectionInterval, ...
    'Stoptime',simulationTime, ...
    'EnableVisualization',enableVisualization, ...
    'EnableHoppingVisualization',enableHoppingVisualization);
coexistenceModel.initializeVisualization();
viewModel(coexistenceModel);
master.CoexistenceVisualization = coexistenceModel;

% Run simulation
for simulationTimer = 0:timeStep:simulationTime
    % Stop the simulation, if all the Slaves are disconnected from the
    % Master due to interference. Master and Slave are disconnected when
    % the PER of the BLE channels in which they are communicating with each
    % other is high.
    if numel(master.ActiveConnectionIdxs(master.ActiveConnectionIdxs ~= -1)) == 0
        fprintf('Simulation terminated as all Slaves are disconnected from the Master device.\n')
        break;
    end

    % Update WLAN traffic in visualization
    helperBLEUpdateWLANTraffic(slavesCount, wlanChannels, wlanTrafficConfig, ...
        simulationTimer, master);

    % MASTER: Transmitting or Receiving mode
    if (master.ActiveChannel == slaveOutput.ChannelIndex) && ...
            strcmpi(master.ActiveAccessAddress, slaveOutput.AccessAddress)
        masterOutput = run(master, slaveOutput);
    else
        masterOutput = run(master, emptyPacket);
    end

    if ~(isempty(masterOutput.LLPDU))
        interferenceEffect = getInterferenceLevel(wlanTrafficConfig, ...
            masterOutput.ChannelIndex, simulationTimer);
        % Corrupt the packet, if the interference effect is 1
        if (interferenceEffect == 1)
            masterOutput.LLPDU(1:2) = ~masterOutput.LLPDU(1:2);
        % Drop the packet, if the interference effect is 2 (interference is
        % too high)
        elseif (interferenceEffect == 2)
            masterOutput = emptyPacket;
        end
    end

    % Update current simulation time
    coexistenceModel.CurrentTime = simulationTimer;
    coexistenceModel.Action = 'Simulation Progress';

    % SLAVE: Transmitting or Receiving mode
    for idx = 1:slavesCount
        % Pass the "MasterOutput" to the Slave listening in the same
        % frequency and matched access address
        if (slaves(idx).ActiveChannel == masterOutput.ChannelIndex) && ...
                strcmpi(slaves(idx).ActiveAccessAddress, masterOutput.AccessAddress)
            slaveOutputs{idx} = run(slaves(idx), masterOutput);
        % Pass an empty packet to all other Slaves to update the timers
        else
            slaveOutputs{idx} = run(slaves(idx), emptyPacket);
        end

        % Update simulation progress for each Slave
        coexistenceModel.SlaveNumber = idx;
        viewModel(coexistenceModel)
    end

    slaveOutput = emptyPacket;

    % Get the active Slave output (At any time instance only one Slave is
    % active)
    for idx = 1:slavesCount
        if ~isempty(slaveOutputs{idx}.LLPDU)
            slaveOutput = slaveOutputs{idx};
            break;
        end
    end

    if ~(isempty(slaveOutput.LLPDU))
        interferenceEffect = getInterferenceLevel(wlanTrafficConfig, ...
            slaveOutput.ChannelIndex, simulationTimer);
         % Corrupt the packet, if the interference effect is 1
        if (interferenceEffect == 1)
            slaveOutput.LLPDU(1:2) = ~slaveOutput.LLPDU(1:2);
        % Drop the packet, if the interference effect is 2 (interference is
        % too high)
        elseif (interferenceEffect == 2)
            slaveOutput = emptyPacket;
        end
    end
end

% Update the simulation progress for each Slave
for idx = 1:slavesCount
    master.CoexistenceVisualization.SlaveNumber = idx;
    master.CoexistenceVisualization.Action = 'Simulation Progress';
    viewModel(master.CoexistenceVisualization)
end

% Log the statistics of this example to
% |bleCoexistenceWithStatisticalWLANStatistics.mat| file
helperBLELogCoexistenceStats(master, slaves, ...
    'bleCoexistenceWithStatisticalWLANStatistics.mat');

% Restore the previous setting of random number generation
rng(sprev);
