Сгенерируйте модель Simulink® из кода CORDIC Atan2 Verilog®

В этом примере показано, как можно импортировать файл, содержащий код Verilog, и сгенерировать соответствующую модель Simulink при помощи importhdl функция. importhdl импорт и синтаксические анализы заданные файлы Verilog, чтобы сгенерировать соответствующую модель Simulink. Код Verilog в этом примере содержит алгоритм CORDIC atan2.

CORDIC арктангенс с 2 аргументами (atan2) Verilog проект

Этот файл входа Verilog реализует алгоритм CORDIC atan2.

cordic_atan2_verilog_file = fullfile(matlabroot, 'toolbox', 'hdlcoder', 'hdlcoderdemos', 'cordic_atan2.v');
type(cordic_atan2_verilog_file);
`timescale 1ns / 1ps

module cordic_atan2(
    input clk,                      // clock
    input reset,                    // reset to the system
    input enable,                   // enable
    input signed [15:0] x_in,       // Input x value
    input signed [15:0] y_in,       // Input Y value
    output reg signed [15:0] theta  // Input theta value
);

// Pipeline the input values
reg signed [17:0]x_in_d; reg signed [17:0]y_in_d;
always @(posedge clk)
begin
    if(reset)    begin
        x_in_d <={18{1'b0}};
        y_in_d <={18{1'b0}};
    end else if(enable) begin
        // extend the input values for intermediate calculations
        x_in_d <= {{2{x_in[15]}},x_in};
        y_in_d <= {{2{y_in[15]}},y_in};
    end
end
// pre quad correction logic
reg x_qaud_adjust;  reg y_qaud_adjust;
reg y_non_zero;  reg signed [17:0]x_pre_quad_out;
reg signed [17:0]y_pre_quad_out;

always @(posedge clk)begin
    if(reset)begin
        x_pre_quad_out <= {18{1'b0}};
        y_pre_quad_out <= {18{1'b0}};
        x_qaud_adjust  <= 1'b0;
        y_qaud_adjust  <= 1'b0;
        y_non_zero     <=1'b0;
    end
    else if(enable)begin
        if(x_in_d[17] == 1'b1)begin
            x_pre_quad_out <= -x_in_d;
            x_qaud_adjust  <= 1'b1;
        end
        else begin
            x_pre_quad_out <= x_in_d;
            x_qaud_adjust  <= 1'b0;
        end
        if(y_in_d[17] == 1'b1)begin
            y_pre_quad_out <= -y_in_d;
            y_qaud_adjust  <= 1'b1;
            y_non_zero     <=1'b1;
        end
        else begin
            y_pre_quad_out <= y_in_d;
            y_qaud_adjust  <= 1'b0;
            y_non_zero     <= |y_in_d; // reduction or for test non zero or not
        end
    end
end

//LOOKUP TABLE FOR THE ANGLES
wire signed [15:0]LUT[0:14];
wire signed [17:0]x_k[0:15];
wire signed [17:0]y_k[0:15];
wire signed [17:0]z_k[0:15];
wire signed [15:0]theta_temp;
parameter PI = 16'sh6488;

assign LUT[0]  = 16'h1922;
assign LUT[1]  = 16'h0Ed6;
assign LUT[2]  = 16'h07D7;
assign LUT[3]  = 16'h03FB;
assign LUT[4]  = 16'h01FF;
assign LUT[5]  = 16'h0100;
assign LUT[6]  = 16'h0080;
assign LUT[7]  = 16'h0040;
assign LUT[8]  = 16'h0020;
assign LUT[9]  = 16'h0010;
assign LUT[10] = 16'h0008;
assign LUT[11] = 16'h0004;
assign LUT[12] = 16'h0002;
assign LUT[13] = 16'h0001;
assign LUT[14] = 16'h0000;

assign x_k[0]  = x_pre_quad_out;
assign y_k[0]  = y_pre_quad_out;

wire  signed [17:0]theta_temp0;
assign theta_temp0 = z_k[15];
assign theta_temp  = theta_temp0[15:0];
assign z_k[0] = 18'd0;

//cordic iterator
genvar  i;
generate
for (i = 0; i<15; i =i+1)
begin
    Kernel cordic_iterator (.clk (clk),
        .reset(reset),
        .enable  (enable ),
        .itr_num(i),
        .x_in(x_k[i]),
        .y_in(y_k[i]),
        .z_in(z_k[i]),
        .lut_constant(LUT[i]),
        .x_out(x_k[i+1]),
        .y_out(y_k[i+1]),
        .z_out(z_k[i+1])
    );
end
endgenerate

// matching delays for the control signls of the pre quadrant correction logic
reg x_qaud_adjust_match_delay[0:14];
reg y_qaud_adjust_match_delay[0:14];
reg y_non_zero_match_delay[0:14];
integer k;
always @(posedge clk)begin
    if(reset)begin
        x_qaud_adjust_match_delay[0] <= 1'b0; y_qaud_adjust_match_delay[0] <= 1'b0;
        y_non_zero_match_delay   [0] <= 1'b0; x_qaud_adjust_match_delay[1] <= 1'b0;
        y_qaud_adjust_match_delay[1] <= 1'b0; y_non_zero_match_delay   [1] <= 1'b0;
        x_qaud_adjust_match_delay[2] <= 1'b0; y_qaud_adjust_match_delay[2] <= 1'b0;
        y_non_zero_match_delay   [2] <= 1'b0; x_qaud_adjust_match_delay[3] <= 1'b0;
        y_qaud_adjust_match_delay[3] <= 1'b0; y_non_zero_match_delay   [3] <= 1'b0;
        x_qaud_adjust_match_delay[4] <= 1'b0; y_qaud_adjust_match_delay[4] <= 1'b0;
        y_non_zero_match_delay   [4] <= 1'b0; x_qaud_adjust_match_delay[5] <= 1'b0;
        y_qaud_adjust_match_delay[5] <= 1'b0; y_non_zero_match_delay   [5] <= 1'b0;
        x_qaud_adjust_match_delay[6] <= 1'b0; y_qaud_adjust_match_delay[6] <= 1'b0;
        y_non_zero_match_delay   [6] <= 1'b0; x_qaud_adjust_match_delay[7] <= 1'b0;
        y_qaud_adjust_match_delay[7] <= 1'b0; y_non_zero_match_delay   [7] <= 1'b0;
        x_qaud_adjust_match_delay[8] <= 1'b0; y_qaud_adjust_match_delay[8] <= 1'b0;
        y_non_zero_match_delay   [8] <= 1'b0; x_qaud_adjust_match_delay[9] <= 1'b0;
        y_qaud_adjust_match_delay[9] <= 1'b0; y_non_zero_match_delay   [9] <= 1'b0;
        x_qaud_adjust_match_delay[10] <= 1'b0; y_qaud_adjust_match_delay[10] <= 1'b0;
        y_non_zero_match_delay   [10] <= 1'b0; x_qaud_adjust_match_delay[11] <= 1'b0;
        y_qaud_adjust_match_delay[11] <= 1'b0; y_non_zero_match_delay   [11] <= 1'b0;
        x_qaud_adjust_match_delay[12] <= 1'b0; y_qaud_adjust_match_delay[12] <= 1'b0;
        y_non_zero_match_delay   [12] <= 1'b0; x_qaud_adjust_match_delay[13] <= 1'b0;
        y_qaud_adjust_match_delay[13] <= 1'b0; y_non_zero_match_delay   [13] <= 1'b0;
        x_qaud_adjust_match_delay[14] <= 1'b0; y_qaud_adjust_match_delay[14] <= 1'b0;
        y_non_zero_match_delay   [14] <= 1'b0;
    end
    else if(enable) begin
        x_qaud_adjust_match_delay[0] <=x_qaud_adjust;
        y_qaud_adjust_match_delay[0] <=y_qaud_adjust;
        y_non_zero_match_delay[0]    <=y_non_zero;
        for(k =0; k <14 ;k = k+1)begin
            x_qaud_adjust_match_delay[k+1] <=  x_qaud_adjust_match_delay[k];
            y_qaud_adjust_match_delay[k+1] <= y_qaud_adjust_match_delay[k];
            y_non_zero_match_delay[k+1] <= y_non_zero_match_delay[k];
        end
    end
end
// post quadrant correction logic

always @(posedge clk) begin
    if(reset)
        theta<=16'd0;
    else if(enable)begin
        if(y_non_zero_match_delay[14])begin
            if(x_qaud_adjust_match_delay[14])begin
                if(y_qaud_adjust_match_delay[14])
                    theta <=theta_temp -PI;
                else
                    theta <=PI -theta_temp;
            end
            else begin
                if(y_qaud_adjust_match_delay[14])
                    theta <= -theta_temp;
                else
                    theta <= theta_temp;
            end
        end
        else if(x_qaud_adjust_match_delay[14])begin
            theta <= PI;
        end
        else begin
            theta <= 16'd0;
        end
    end
end

endmodule

module  Kernel(
    input clk,
    input reset,
    input enable,
    input signed [17:0]x_in,
    input signed [17:0]y_in,
    input signed [17:0]z_in,
    input [4:0]itr_num,
    input signed [15:0]lut_constant,
    output reg signed [17:0]x_out,
    output reg signed [17:0]y_out,
    output reg signed [17:0]z_out);

wire signed [17:0] lut_constant_signExtension = {{2{lut_constant[15]}},lut_constant};

always @(posedge clk)begin
    if(reset)begin
        x_out <={18{1'b0}};
        y_out <={18{1'b0}};
        z_out <= {18{1'b0}};
    end
    else if(enable)begin
        if(y_in[17])begin
            x_out <= x_in -(y_in>>>itr_num);
            y_out <= y_in + (x_in>>>itr_num);
            z_out <= z_in  - lut_constant_signExtension;
        end
        else begin
            x_out <= x_in +(y_in>>>itr_num);
            y_out <= y_in - (x_in>>>itr_num);
            z_out <= z_in  + lut_constant_signExtension;
        end
    end
end

endmodule

Этот проект Verilog содержит различные обычно используемые построения Verilog, такие как:

  • Непрерывные присвоения

  • Всегда блоки

  • Условные операторы

  • Инстанцирование модуля

  • Сгенерируйте построения

  • Цикл for

Импортируйте Файл HDL, Содержащий алгоритм CORDIC atan2

Чтобы импортировать файл Verilog, задайте имя файла в качестве аргумента к importhdl функция.

importhdl(cordic_atan2_verilog_file);
### Parsing <a href="matlab:edit('/mathworks/devel/bat/BR2020ad/build/matlab/toolbox/hdlcoder/hdlcoderdemos/cordic_atan2.v')">cordic_atan2.v</a>.
### Top Module name: 'cordic_atan2'.
### Identified ClkName::clk.
### Identified RstName::reset.
### Identified ClkEnbName::enable.
Warning: Unused signals detected in the Demux block created for vector index signal 'x_k'. A Demux block created for a vector index signal has all possible output signals based on the size and dimensions provided.
Warning: Unused signals detected in the Demux block created for vector index signal 'y_k'. A Demux block created for a vector index signal has all possible output signals based on the size and dimensions provided.
### Hdl Import parsing done.
### Removing unconnected components.
### Unconnected components detected when importing the HDL code. These components are removed from the generated Simulink model.
### Creating Target model cordic_atan2
### Start Layout...
### Working on hierarchy at ---> 'cordic_atan2'.
### Laying out components.
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2'.
### Laying out components.
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator1'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator10'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator11'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator12'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator13'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator14'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator2'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator3'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator4'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator5'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator6'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator7'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator8'.
### Laying out components.
### Drawing block edges...
### Working on hierarchy at ---> 'cordic_atan2/cordic_atan2/cordic_iterator9'.
### Laying out components.
### Drawing block edges...
### Drawing block edges...
### Drawing block edges...
### Setting model parameters.
### Generated model file /tmp/BR2020ad_1302590_239645/publish_examples3/tpe96f26a8/hdlimport/cordic_atan2/cordic_atan2.slx.
### Importhdl completed.

importhdl анализирует входной файл и отображает сообщения процесса импорта в Командном окне MATLAB™. Импорт обеспечивает ссылку на сгенерированную модель Simulink cordic_atan2.slx. Сгенерированная модель использует то же имя в качестве главного модуля в файле входа Verilog.

Исследуйте сгенерированную модель Simulink

Чтобы открыть сгенерированную модель Simulink, щелкните по ссылке в Командном окне. Модель сохранена в hdlimport/cordic_atan2 путь относительно текущей папки. Можно симулировать модель и наблюдать результаты симуляции.

open_system('hdlimport/cordic_atan2/cordic_atan2')
Simulink.BlockDiagram.arrangeSystem('cordic_atan2')
set_param('cordic_atan2', 'UnconnectedOutputMsg', 'None');
sim('hdlimport/cordic_atan2/cordic_atan2.slx');

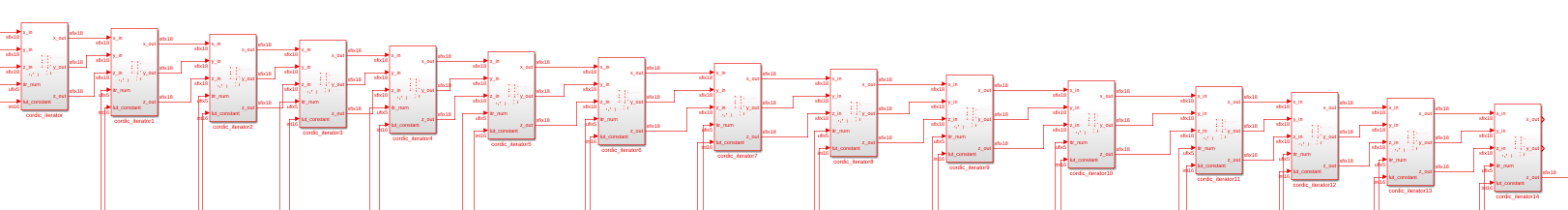

Сгенерированные экземпляры Модуля

Код Verilog инстанцирует 15 модули ядра при помощи сгенерировать построения. В сгенерированной модели Simulink, 15 модули ядра замечены.

generate
    for (i = 0; i<15; i =i+1)
    begin
        Kernel cordic_iterator (.clk(clk),
                                .reset(reset),
                                .enable(enable),
                                .itr_num(i),
                                .x_in(x_k[i]),
                                .y_in(y_k[i]),
                                .z_in(z_k[i]),
                                .lut_constant(LUT[i]),
                                .x_out(x_k[i+1]),
                                .y_out(y_k[i+1]),
                                .z_out(z_k[i+1]));
    end
endgenerate

Модель Simulink для Модуля Ядра

module  Kernel(
    input clk,
    input reset,
    input enable,
    input signed [17:0]x_in,
    input signed [17:0]y_in,
    input signed [17:0]z_in,
    input [4:0]itr_num,
    input signed [15:0]lut_constant,
    output reg signed [17:0]x_out,
    output reg signed [17:0]y_out,
    output reg signed [17:0]z_out);
wire signed [17:0] lut_constant_signExtension = {{2{lut_constant[15]}},lut_constant};
always @(posedge clk)begin
      if(reset)begin
         x_out <={18{1'b0}};
         y_out <={18{1'b0}};
         z_out <= {18{1'b0}};
      end
    else if(enable)begin
        if(y_in[17])begin
            x_out <= x_in -(y_in>>>itr_num);
            y_out <= y_in + (x_in>>>itr_num);
            z_out <= z_in  - lut_constant_signExtension;
        end
        else begin
            x_out <= x_in +(y_in>>>itr_num);
            y_out <= y_in - (x_in>>>itr_num);
            z_out <= z_in  + lut_constant_signExtension;
          end
      end
 end
  endmodule

Ссылки

Для просмотра документации необходимо авторизоваться на сайте
