/*  File    : csfunc.c
 *  Abstract:
 *

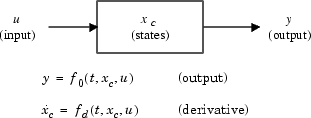

 *      Example C S-function for defining a continuous system.
 *
 *      x' = Ax + Bu
 *      y  = Cx + Du
 *
 *      For more details about S-functions, see simulink/src/sfuntmpl_doc.c.
 *
 *  Copyright 1990-2013 The MathWorks, Inc.
 */

#define S_FUNCTION_NAME csfunc
#define S_FUNCTION_LEVEL 2

#include "simstruc.h"

#define U(element) (*uPtrs[element])  /* Pointer to Input Port0 */

static real_T A[2][2]={ { -0.09, -0.01 } ,
                        {  1   ,  0    }
                      };

static real_T B[2][2]={ {  1   , -7    } ,
                        {  0   , -2    }
                      };

static real_T C[2][2]={ {  0   , 2     } ,
                        {  1   , -5    }
                      };

static real_T D[2][2]={ { -3   , 0     } ,
                        {  1   , 0     }
                      };

/*====================*
 * S-function methods *
 *====================*/

/* Function: mdlInitializeSizes ===============================================
 * Abstract:
 *    Determine the S-function block's characteristics:
 *    number of inputs, outputs, states, etc.
 */
static void mdlInitializeSizes(SimStruct *S)
{
    ssSetNumSFcnParams(S, 0);  /* Number of expected parameters */
    if (ssGetNumSFcnParams(S) != ssGetSFcnParamsCount(S)) {
        return; /* Parameter mismatch reported by the Simulink engine*/
    }

    ssSetNumContStates(S, 2);
    ssSetNumDiscStates(S, 0);

    if (!ssSetNumInputPorts(S, 1)) return;
    ssSetInputPortWidth(S, 0, 2);
    ssSetInputPortDirectFeedThrough(S, 0, 1);

    if (!ssSetNumOutputPorts(S, 1)) return;
    ssSetOutputPortWidth(S, 0, 2);

    ssSetNumSampleTimes(S, 1);
    ssSetNumRWork(S, 0);
    ssSetNumIWork(S, 0);
    ssSetNumPWork(S, 0);
    ssSetNumModes(S, 0);
    ssSetNumNonsampledZCs(S, 0);

    /* Take care when specifying exception free code - see sfuntmpl_doc.c */
    ssSetOptions(S, SS_OPTION_EXCEPTION_FREE_CODE);
}

/* Function: mdlInitializeSampleTimes =========================================
 * Abstract:
 *    Specify that we have a continuous sample time.
 */
static void mdlInitializeSampleTimes(SimStruct *S)
{
    ssSetSampleTime(S, 0, CONTINUOUS_SAMPLE_TIME);
    ssSetOffsetTime(S, 0, 0.0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);
}

#define MDL_INITIALIZE_CONDITIONS
/* Function: mdlInitializeConditions ========================================
 * Abstract:
 *    Initialize both continuous states to zero.
 */
static void mdlInitializeConditions(SimStruct *S)
{
    real_T *x0 = ssGetContStates(S);
    int_T  lp;

    for (lp=0;lp<2;lp++) {
        *x0++=0.0;
    }
}

/* Function: mdlOutputs =======================================================
 * Abstract:
 *      y = Cx + Du
 */
static void mdlOutputs(SimStruct *S, int_T tid)
{
    real_T            *y    = ssGetOutputPortRealSignal(S,0);
    real_T            *x    = ssGetContStates(S);
    InputRealPtrsType uPtrs = ssGetInputPortRealSignalPtrs(S,0);

    UNUSED_ARG(tid); /* not used in single tasking mode */

    /* y=Cx+Du */
    y[0]=C[0][0]*x[0]+C[0][1]*x[1]+D[0][0]*U(0)+D[0][1]*U(1);
    y[1]=C[1][0]*x[0]+C[1][1]*x[1]+D[1][0]*U(0)+D[1][1]*U(1);
}

#define MDL_DERIVATIVES
/* Function: mdlDerivatives =================================================
 * Abstract:
 *      xdot = Ax + Bu
 */
static void mdlDerivatives(SimStruct *S)
{
    real_T            *dx   = ssGetdX(S);
    real_T            *x    = ssGetContStates(S);
    InputRealPtrsType uPtrs = ssGetInputPortRealSignalPtrs(S,0);

    /* xdot=Ax+Bu */
    dx[0]=A[0][0]*x[0]+A[0][1]*x[1]+B[0][0]*U(0)+B[0][1]*U(1);
    dx[1]=A[1][0]*x[0]+A[1][1]*x[1]+B[1][0]*U(0)+B[1][1]*U(1);
}

/* Function: mdlTerminate =====================================================
 * Abstract:
 *    No termination needed, but we are required to have this routine.
 */
static void mdlTerminate(SimStruct *S)
{
    UNUSED_ARG(S); /* unused input argument */
}

#ifdef  MATLAB_MEX_FILE    /* Is this file being compiled as a MEX file? */
#include "simulink.c"      /* MEX file interface mechanism */
#else
#include "cg_sfun.h"       /* Code generation registration function */
#endif

/*  File    : dsfunc.c
 *  Abstract:
 *

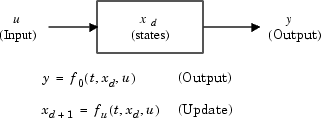

 *      Example C S-function for defining a discrete system.
 *
 *      x(n+1) = Ax(n) + Bu(n)
 *      y(n)   = Cx(n) + Du(n)
 *
 *      For more details about S-functions, see simulink/src/sfuntmpl_doc.c.
 *
 *  Copyright 1990-2013 The MathWorks, Inc.
 */

#define S_FUNCTION_NAME dsfunc
#define S_FUNCTION_LEVEL 2

#include "simstruc.h"

#define U(element) (*uPtrs[element])  /* Pointer to Input Port0 */

static real_T A[2][2]={ { -1.3839, -0.5097 } ,
                        {  1     ,  0      }
                      };

static real_T B[2][2]={ { -2.5559,  0      } ,
                        {  0     ,  4.2382 }
                      };

static real_T C[2][2]={ {  0     ,  2.0761 } ,
                        {  0     ,  7.7891 }
                      };

static real_T D[2][2]={ { -0.8141, -2.9334 } ,
                        {  1.2426,  0      }
                      };

/*====================*
 * S-function methods *
 *====================*/

/* Function: mdlInitializeSizes ===============================================
 * Abstract:
 *    Determine the S-function block's characteristics:
 *    number of inputs, outputs, states, etc.
 */
static void mdlInitializeSizes(SimStruct *S)
{
    ssSetNumSFcnParams(S, 0);  /* Number of expected parameters */
    if (ssGetNumSFcnParams(S) != ssGetSFcnParamsCount(S)) {
        return; /* Parameter mismatch reported by the Simulink engine*/
    }

    ssSetNumContStates(S, 0);
    ssSetNumDiscStates(S, 2);

    if (!ssSetNumInputPorts(S, 1)) return;
    ssSetInputPortWidth(S, 0, 2);
    ssSetInputPortDirectFeedThrough(S, 0, 1);

    if (!ssSetNumOutputPorts(S, 1)) return;
    ssSetOutputPortWidth(S, 0, 2);

    ssSetNumSampleTimes(S, 1);
    ssSetNumRWork(S, 0);
    ssSetNumIWork(S, 0);
    ssSetNumPWork(S, 0);
    ssSetNumModes(S, 0);
    ssSetNumNonsampledZCs(S, 0);

    /* Take care when specifying exception free code - see sfuntmpl_doc.c */
    ssSetOptions(S, SS_OPTION_EXCEPTION_FREE_CODE);
}

/* Function: mdlInitializeSampleTimes =========================================
 * Abstract:
 *    Specify a sample time 0f 1.0.
 */
static void mdlInitializeSampleTimes(SimStruct *S)
{
    ssSetSampleTime(S, 0, 1.0);
    ssSetOffsetTime(S, 0, 0.0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);
}

#define MDL_INITIALIZE_CONDITIONS
/* Function: mdlInitializeConditions ========================================
 * Abstract:
 *    Initialize both discrete states to one.
 */
static void mdlInitializeConditions(SimStruct *S)
{
    real_T *x0 = ssGetRealDiscStates(S);
    int_T  lp;

    for (lp=0;lp<2;lp++) {
        *x0++=1.0;
    }
}

/* Function: mdlOutputs =======================================================
 * Abstract:
 *      y = Cx + Du
 */
static void mdlOutputs(SimStruct *S, int_T tid)
{
    real_T            *y    = ssGetOutputPortRealSignal(S,0);
    real_T            *x    = ssGetRealDiscStates(S);
    InputRealPtrsType uPtrs = ssGetInputPortRealSignalPtrs(S,0);

    UNUSED_ARG(tid); /* not used in single tasking mode */

    /* y=Cx+Du */
    y[0]=C[0][0]*x[0]+C[0][1]*x[1]+D[0][0]*U(0)+D[0][1]*U(1);
    y[1]=C[1][0]*x[0]+C[1][1]*x[1]+D[1][0]*U(0)+D[1][1]*U(1);
}

#define MDL_UPDATE
/* Function: mdlUpdate ======================================================
 * Abstract:
 *      xdot = Ax + Bu
 */
static void mdlUpdate(SimStruct *S, int_T tid)
{
    real_T            tempX[2] = {0.0, 0.0};
    real_T            *x       = ssGetRealDiscStates(S);
    InputRealPtrsType uPtrs    = ssGetInputPortRealSignalPtrs(S,0);

    UNUSED_ARG(tid); /* not used in single tasking mode */

    /* xdot=Ax+Bu */
    tempX[0]=A[0][0]*x[0]+A[0][1]*x[1]+B[0][0]*U(0)+B[0][1]*U(1);
    tempX[1]=A[1][0]*x[0]+A[1][1]*x[1]+B[1][0]*U(0)+B[1][1]*U(1);

    x[0]=tempX[0];
    x[1]=tempX[1];
}

/* Function: mdlTerminate =====================================================
 * Abstract:
 *    No termination needed, but we are required to have this routine.
 */
static void mdlTerminate(SimStruct *S)
{
    UNUSED_ARG(S); /* unused input argument */
}

#ifdef  MATLAB_MEX_FILE    /* Is this file being compiled as a MEX file? */
#include "simulink.c"      /* MEX file interface mechanism */
#else
#include "cg_sfun.h"       /* Code generation registration function */
#endif

/*  File    : mixedm.c
 *  Abstract:
 *
 *      An example S-function illustrating multiple sample times by implementing
 *         integrator -> ZOH(Ts=1second) -> UnitDelay(Ts=1second)
 *      with an initial condition of 1.
 *	(e.g. an integrator followed by unit delay operation).
 *
 *      For more details about S-functions, see simulink/src/sfuntmpl_doc.c
 *
 *  Copyright 1990-2007 The MathWorks, Inc.
 */

#define S_FUNCTION_NAME mixedm
#define S_FUNCTION_LEVEL 2

#include "simstruc.h"

#define U(element) (*uPtrs[element])  /* Pointer to Input Port0 */

*====================*
 * S-function methods *
 *====================*/

/* Function: mdlInitializeSizes ===============================================
 * Abstract:
 *    Determine the S-function block's characteristics:
 *    number of inputs, outputs, states, etc.
 */
static void mdlInitializeSizes(SimStruct *S)
{
    ssSetNumSFcnParams(S, 0);  /* Number of expected parameters */
    if (ssGetNumSFcnParams(S) != ssGetSFcnParamsCount(S)) {
        return; /* Parameter mismatch reported by the Simulink engine*/
    }

    ssSetNumContStates(S, 1);
    ssSetNumDiscStates(S, 1);
    ssSetNumRWork(S, 1);  /* for zoh output feeding the delay operator */

    if (!ssSetNumInputPorts(S, 1)) return;
    ssSetInputPortWidth(S, 0, 1);
    ssSetInputPortDirectFeedThrough(S, 0, 1);
    ssSetInputPortSampleTime(S, 0, CONTINUOUS_SAMPLE_TIME);
    ssSetInputPortOffsetTime(S, 0, 0.0);

    if (!ssSetNumOutputPorts(S, 1)) return;
    ssSetOutputPortWidth(S, 0, 1);
    ssSetOutputPortSampleTime(S, 0, 1.0);
    ssSetOutputPortOffsetTime(S, 0, 0.0);

    ssSetNumSampleTimes(S, 2);

    /* Take care when specifying exception free code - see sfuntmpl_doc.c. */
    ssSetOptions(S, (SS_OPTION_EXCEPTION_FREE_CODE |
                     SS_OPTION_PORT_SAMPLE_TIMES_ASSIGNED));

} /* end mdlInitializeSizes */

/* Function: mdlInitializeSampleTimes =========================================
 * Abstract:
 *    Two tasks: One continuous, one with discrete sample time of 1.0.
 */
static void mdlInitializeSampleTimes(SimStruct *S)
{
    ssSetSampleTime(S, 0, CONTINUOUS_SAMPLE_TIME);
    ssSetOffsetTime(S, 0, 0.0);

    ssSetSampleTime(S, 1, 1.0);
    ssSetOffsetTime(S, 1, 0.0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);
} /* end mdlInitializeSampleTimes */

#define MDL_INITIALIZE_CONDITIONS
/* Function: mdlInitializeConditions ==========================================
 * Abstract:
 *    Initialize both continuous states to one.
 */
static void mdlInitializeConditions(SimStruct *S)
{
    real_T *xC0 = ssGetContStates(S);
    real_T *xD0 = ssGetRealDiscStates(S);

    xC0[0] = 1.0;
    xD0[0] = 1.0;

} /* end mdlInitializeConditions */

/* Function: mdlOutputs =======================================================
 * Abstract:
 *      y = xD, and update the zoh internal output.
 */
static void mdlOutputs(SimStruct *S, int_T tid)
{
    /* update the internal "zoh" output */
    if (ssIsContinuousTask(S, tid)) {
        if (ssIsSpecialSampleHit(S, 1, 0, tid)) {
            real_T *zoh = ssGetRWork(S);
            real_T *xC  = ssGetContStates(S);
            *zoh = *xC;
        }
    }

    /* y=xD */
    if (ssIsSampleHit(S, 1, tid)) {
        real_T *y   = ssGetOutputPortRealSignal(S,0);
        real_T *xD  = ssGetRealDiscStates(S);
        y[0]=xD[0];
    }


} /* end mdlOutputs */

#define MDL_UPDATE
/* Function: mdlUpdate ======================================================
 * Abstract:
 *      xD = xC
 */
static void mdlUpdate(SimStruct *S, int_T tid)
{
    UNUSED_ARG(tid); /* not used in single tasking mode */

    /* xD=xC */
    if (ssIsSampleHit(S, 1, tid)) {
        real_T *xD = ssGetRealDiscStates(S);
        real_T *zoh = ssGetRWork(S);
        xD[0]=*zoh;
    }
} /* end mdlUpdate */

#define MDL_DERIVATIVES
/* Function: mdlDerivatives =================================================
 * Abstract:
 *      xdot = U
 */
static void mdlDerivatives(SimStruct *S)
{
    real_T            *dx   = ssGetdX(S);
    InputRealPtrsType uPtrs = ssGetInputPortRealSignalPtrs(S,0);

    /* xdot=U */
    dx[0]=U(0);

} /* end mdlDerivatives */

/* Function: mdlTerminate =====================================================
 * Abstract:
 *    No termination needed, but we are required to have this routine.
 */
static void mdlTerminate(SimStruct *S)
{
    UNUSED_ARG(S); /* unused input argument */
}

#ifdef  MATLAB_MEX_FILE    /* Is this file being compiled as a MEX file? */
#include "simulink.c"      /* MEX file interface mechanism */
#else
#include "cg_sfun.h"       /* Code generation registration function */
#endif

/*  File    : vsfunc.c
 *  Abstract:
 *
 *      Variable step S-function example.
 *      This example S-function illustrates how to create a variable step
 *      block.  This block implements a variable step delay
 *      in which the first input is delayed by an amount of time determined
 *      by the second input:
 *
 *      dt      = u(2)
 *      y(t+dt) = u(t)
 *
 *      For more details about S-functions, see simulink/src/sfuntmpl_doc.c.
 *
 *  Copyright 1990-2007 The MathWorks, Inc.
 */

#define S_FUNCTION_NAME vsfunc
#define S_FUNCTION_LEVEL 2

#include "simstruc.h"

#define U(element) (*uPtrs[element])  /* Pointer to Input Port0 */

/* Function: mdlInitializeSizes ===============================================
 * Abstract:
 *    Determine the S-function block's characteristics:
 *    number of inputs, outputs, states, etc.
 */
static void mdlInitializeSizes(SimStruct *S)
{
    ssSetNumSFcnParams(S, 0);  /* Number of expected parameters */
    if (ssGetNumSFcnParams(S) != ssGetSFcnParamsCount(S)) {
        return; /* Parameter mismatch reported by the Simulink engine*/
    }

    ssSetNumContStates(S, 0);
    ssSetNumDiscStates(S, 1);

    if (!ssSetNumInputPorts(S, 1)) return;
    ssSetInputPortWidth(S, 0, 2);
    ssSetInputPortDirectFeedThrough(S, 0, 1);

    if (!ssSetNumOutputPorts(S, 1)) return;
    ssSetOutputPortWidth(S, 0, 1);

    ssSetNumSampleTimes(S, 1);
    ssSetNumRWork(S, 0);
    ssSetNumIWork(S, 0);
    ssSetNumPWork(S, 0);
    ssSetNumModes(S, 0);
    ssSetNumNonsampledZCs(S, 0);

    if (ssGetSimMode(S) == SS_SIMMODE_RTWGEN && !ssIsVariableStepSolver(S)) {
        ssSetErrorStatus(S, "S-function vsfunc.c cannot be used with RTW "
                         "and Fixed-Step Solvers because it contains variable"
                         " sample time");
    }

    /* Take care when specifying exception free code - see sfuntmpl_doc.c */
    ssSetOptions(S, SS_OPTION_EXCEPTION_FREE_CODE);
}

/* Function: mdlInitializeSampleTimes =========================================
 * Abstract:
 *    Variable-Step S-function
 */
static void mdlInitializeSampleTimes(SimStruct *S)
{
    ssSetSampleTime(S, 0, VARIABLE_SAMPLE_TIME);
    ssSetOffsetTime(S, 0, 0.0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);
}

#define MDL_INITIALIZE_CONDITIONS
/* Function: mdlInitializeConditions ========================================
 * Abstract:
 *    Initialize discrete state to zero.
 */
static void mdlInitializeConditions(SimStruct *S)
{
    real_T *x0 = ssGetRealDiscStates(S);

    x0[0] = 0.0;
}

#define MDL_GET_TIME_OF_NEXT_VAR_HIT
static void mdlGetTimeOfNextVarHit(SimStruct *S)
{
    InputRealPtrsType uPtrs = ssGetInputPortRealSignalPtrs(S,0);

    /* Make sure input will increase time */
    if (U(1) <= 0.0) {
        /* If not, abort simulation */
        ssSetErrorStatus(S,"Variable step control input must be "
                         "greater than zero");
        return;
    }
    ssSetTNext(S, ssGetT(S)+U(1));
}

/* Function: mdlOutputs =======================================================
 * Abstract:
 *      y = x
 */
static void mdlOutputs(SimStruct *S, int_T tid)
{
    real_T *y = ssGetOutputPortRealSignal(S,0);
    real_T *x = ssGetRealDiscStates(S);

    /* Return the current state as the output */
    y[0] = x[0];
}

#define MDL_UPDATE
/* Function: mdlUpdate ========================================================
 * Abstract:
 *    This function is called once for every major integration time step.
 *    Discrete states are typically updated here, but this function is useful
 *    for performing any tasks that should only take place once per integration
 *    step.
 */
static void mdlUpdate(SimStruct *S, int_T tid)
{
    real_T            *x    = ssGetRealDiscStates(S);
    InputRealPtrsType uPtrs = ssGetInputPortRealSignalPtrs(S,0);

    x[0]=U(0);
}

/* Function: mdlTerminate =====================================================
 * Abstract:
 *    No termination needed, but we are required to have this routine.
 */
static void mdlTerminate(SimStruct *S)
{
}

#ifdef  MATLAB_MEX_FILE    /* Is this file being compiled as a MEX file? */
#include "simulink.c"      /* MEX file interface mechanism */
#else
#include "cg_sfun.h"       /* Code generation registration function */
#endif

/* SFUN_MATADD matrix support example.
 *   C MEX S-function for matrix addition with one input port,
 *   one output port, and one parameter.
 *
 *  Input Signal:  2-D or n-D array
 *  Parameter:     2-D or n-D array
 *  Output Signal: 2-D or n-D array
 *
 *  Input   parameter    output
 *  --------------------------------
 *  scalar   scalar      scalar
 *  scalar   matrix     matrix     (input scalar expansion)
 *  matrix   scalar     matrix     (parameter scalar expansion)
 *  matrix   matrix     matrix
 *
 *  Copyright 1990-2007 The MathWorks, Inc.
 */
#define S_FUNCTION_NAME  sfun_matadd
#define S_FUNCTION_LEVEL 2

#include "simstruc.h"

enum {PARAM = 0, NUM_PARAMS};

#define PARAM_ARG ssGetSFcnParam(S, PARAM)

#define EDIT_OK(S, ARG) \
  (!((ssGetSimMode(S) == SS_SIMMODE_SIZES_CALL_ONLY) \
  && mxIsEmpty(ARG)))

#ifdef MATLAB_MEX_FILE
#define MDL_CHECK_PARAMETERS
/* Function: mdlCheckParameters ================================

 * Abstract:
 *    Verify parameter settings.
 */
static void mdlCheckParameters(SimStruct *S)
{
    if(EDIT_OK(S, PARAM_ARG)){
        /* Check that parameter value is not empty*/
        if( mxIsEmpty(PARAM_ARG) ) {
          ssSetErrorStatus(S, "Invalid parameter specified. The"
                              "parameter must be non-empty");
          return;
        }
    }
} /* end mdlCheckParameters */
#endif

/* Function: mdlInitializeSizes ================================
 * Abstract:
 *   Initialize the sizes array
 */
static void mdlInitializeSizes(SimStruct *S)
{
    ssSetNumSFcnParams(S, NUM_PARAMS);

   #if defined(MATLAB_MEX_FILE)
      if (ssGetNumSFcnParams(S) != ssGetSFcnParamsCount(S)) {
         return; }
      mdlCheckParameters(S);
      if (ssGetErrorStatus(S) != NULL) return;
   #endif

   {
      int iParam = 0;
      int nParam = ssGetNumSFcnParams(S);

      for ( iParam = 0; iParam < nParam; iParam++ )
        {
          ssSetSFcnParamTunable( S, iParam, SS_PRM_TUNABLE );
        }
    }

   /* Allow signal dimensions greater than 2 */
   ssAllowSignalsWithMoreThan2D(S);

   /* Set number of input and output ports */
   if (!ssSetNumInputPorts( S,1)) return;
   if (!ssSetNumOutputPorts(S,1)) return;

   /* Set dimensions of input and output ports */
   {
      int_T pWidth = mxGetNumberOfElements(PARAM_ARG);
      /* Input can be a scalar or a matrix signal. */
      if(!ssSetInputPortDimensionInfo(S,0,DYNAMIC_DIMENSION)) {
          return; }

      if( pWidth == 1) {
       /* Scalar parameter: output dimensions are unknown. */
       if(!ssSetOutputPortDimensionInfo(S,0,DYNAMIC_DIMENSION)){
           return; }
       }
      else{
         /*
          * Non-scalar parameter: output dimensions are the same
          * as the parameter dimensions. To support n-D signals,
          * must use a dimsInfo structure to specify dimensions.
          */
          DECL_AND_INIT_DIMSINFO(di); /*Initializes structure*/
          int_T      pSize = mxGetNumberOfDimensions(PARAM_ARG);
          const int_T *pDims = mxGetDimensions(PARAM_ARG);
          di.width   = pWidth;
          di.numDims = pSize;
          di.dims    = pDims;
          if(!ssSetOutputPortDimensionInfo(S, 0, &di)) return;
          }
    }
    ssSetInputPortDirectFeedThrough(S, 0, 1);

    ssSetNumSampleTimes(S, 1);
    ssSetOptions(S,
                 SS_OPTION_WORKS_WITH_CODE_REUSE |
                 SS_OPTION_EXCEPTION_FREE_CODE);
} /* end mdlInitializeSizes */

/* Function: mdlInitializeSampleTimes ==========================
 * Abstract:
 *    Initialize the sample times array.
 */
static void mdlInitializeSampleTimes(SimStruct *S)
{
    ssSetSampleTime(S, 0, INHERITED_SAMPLE_TIME);
    ssSetOffsetTime(S, 0, 0.0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);
} /* end mdlInitializeSampleTimes */

/* Function: mdlSetWorkWidths ==================================
 * Abstract:
 *    Set up run-time parameter.
 */
#define MDL_SET_WORK_WIDTHS
static void mdlSetWorkWidths(SimStruct *S)
{
    const char_T    *rtParamNames[] = {"Operand"};
    ssRegAllTunableParamsAsRunTimeParams(S, rtParamNames);
} /* end mdlSetWorkWidths */

/* Function: mdlOutputs ========================================
 * Abstract:
 *   Compute the outputs of the S-function.
 */
static void mdlOutputs(SimStruct *S, int_T tid)
{
    InputRealPtrsType uPtr = ssGetInputPortRealSignalPtrs(S,0);
    real_T            *y   = ssGetOutputPortRealSignal(S,0);
    const real_T      *p   = mxGetPr(PARAM_ARG);

    int_T             uWidth = ssGetInputPortWidth(S,0);
    int_T             pWidth = mxGetNumberOfElements(PARAM_ARG);
    int_T             yWidth = ssGetOutputPortWidth(S,0);
    int               i;

    UNUSED_ARG(tid); /* not used in single tasking mode */

    /*
     * Note1: Matrix signals are stored in column major order.
     * Note2: Access each matrix element by one index not two
     *        indices. For example, if the output signal is a
     *        [2x2] matrix signal,
     *        -          -
     *       | y[0]  y[2] |
     *       | y[1]  y[3] |
     *       -           -
     *       Output elements are stored as follows:
     *           y[0] --> row = 0, col = 0
     *           y[1] --> row = 1, col = 0
     *           y[2] --> row = 0, col = 1
     *           y[3] --> row = 1, col = 1
     */

    for (i = 0; i < yWidth; i++) {
        int_T uIdx = (uWidth == 1) ? 0 : i;
        int_T pIdx = (pWidth == 1) ? 0 : i;

        y[i] = *uPtr[uIdx] + p[pIdx];
    }
} /* end mdlOutputs */

#if defined(MATLAB_MEX_FILE)
#define MDL_SET_INPUT_PORT_DIMENSION_INFO
/* Function: mdlSetInputPortDimensionInfo ======================
 * Abstract:
 *    This routine is called with the candidate dimensions for
 *    an input port with unknown dimensions. If the proposed
 *    dimensions are acceptable, the routine should go ahead and
 *    set the actual port dimensions. If they are unacceptable
 *    an error should be generated via ssSetErrorStatus.
 *    Note that any other input or output ports whose dimensions
 *    are implicitly defined by virtue of knowing the dimensions
 *    of the given port can also have their dimensions set.
 */
static void mdlSetInputPortDimensionInfo(SimStruct        *S,
   int_T            port,
   const DimsInfo_T *dimsInfo)
{
    int_T  pWidth          = mxGetNumberOfElements(PARAM_ARG);
    int_T  pSize           = mxGetNumberOfDimensions(PARAM_ARG);
    const int_T  *pDims    = mxGetDimensions(PARAM_ARG);

    int_T  uNumDims = dimsInfo->numDims;
    int_T  uWidth   = dimsInfo->width;
    int_T  *uDims   = dimsInfo->dims;

    int_T numDims;
    boolean_T  isOk = true;
    int iParam = 0;
    int_T outWidth = ssGetOutputPortWidth(S, 0);

    /* Set input port dimension */
    if(!ssSetInputPortDimensionInfo(S, port, dimsInfo)) return;

    /*
     * The block only accepts 2-D or higher signals. Check
     * number of dimensions. If the parameter and the input
     * signal are non-scalar, their dimensions must be the same.
     */
    isOk = (uNumDims >= 2) && (pWidth == 1 || uWidth == 1 ||
       pWidth == uWidth);
    numDims = (pSize != uNumDims) ? numDims : uNumDims;

    if(isOk && pWidth > 1 && uWidth > 1){
        for ( iParam = 0; iParam < numDims; iParam++ ) {
            isOk = (pDims[iParam] == uDims[iParam]);
            if(!isOk) break;
        }
    }

    if(!isOk){
        ssSetErrorStatus(S,"Invalid input port dimensions. The "
        "input signal must be a 2-D scalar signal, or it must "
        "be a matrix with the same dimensions as the parameter "
        "dimensions.");
        return;
    }

    /* Set the output port dimensions */
    if (outWidth == DYNAMICALLY_SIZED){
      if(!ssSetOutputPortDimensionInfo(S,port,dimsInfo)) return;
    }
} /* end mdlSetInputPortDimensionInfo */

# define MDL_SET_OUTPUT_PORT_DIMENSION_INFO
/* Function: mdlSetOutputPortDimensionInfo =====================
 * Abstract:
 *    This routine is called with the candidate dimensions for
 *    an output port with unknown dimensions. If the proposed
 *    dimensions are acceptable, the routine should go ahead and
 *    set the actual port dimensions. If they are unacceptable
 *    an error should be generated via ssSetErrorStatus.
 *    Note that any other input or output ports whose dimensions
 *    are implicitly defined by virtue of knowing the dimensions
 *    of the given port can also have their dimensions set.
 */
static void mdlSetOutputPortDimensionInfo(SimStruct        *S,
   int_T            port,
   const DimsInfo_T *dimsInfo)
{
    /*
     * If the block has scalar parameter, the output dimensions
     * are unknown. Set the input and output port to have the
     * same dimensions.
     */
    if(!ssSetOutputPortDimensionInfo(S, port, dimsInfo)) return;

    /* The block only accepts 2-D or n-D signals.
     * Check number of dimensions.
     */
    if (!(dimsInfo->numDims >= 2)){
        ssSetErrorStatus(S, "Invalid output port dimensions. "
        "The output signal must be a 2-D or n-D array (matrix) "
        "signal.");
        return;
    }else{
       /* Set the input port dimensions */
       if(!ssSetInputPortDimensionInfo(S,port,dimsInfo)) return;
    }
} /* end mdlSetOutputPortDimensionInfo */

# define MDL_SET_DEFAULT_PORT_DIMENSION_INFO
/* Function: mdlSetDefaultPortDimensionInfo ====================
 *    This routine is called when the Simulink engine is not able
 *    to find dimension candidates for ports with unknown dimensions.
 *    This function must set the dimensions of all ports with
 *    unknown dimensions.
 */
static void mdlSetDefaultPortDimensionInfo(SimStruct *S)
{
    int_T outWidth = ssGetOutputPortWidth(S, 0);
    /* Input port dimension must be unknown. Set it to scalar.*/
    if(!ssSetInputPortMatrixDimensions(S, 0, 1, 1)) return;
    if(outWidth == DYNAMICALLY_SIZED){
        /* Output dimensions are unknown. Set it to scalar. */
        if(!ssSetOutputPortMatrixDimensions(S, 0, 1, 1)) return;
    }
} /* end mdlSetDefaultPortDimensionInfo */
#endif

/* Function: mdlTerminate ======================================
 * Abstract:
 *    Called when the simulation is terminated.
 */
static void mdlTerminate(SimStruct *S)
{
    UNUSED_ARG(S); /* unused input argument */

} /* end mdlTerminate */

#ifdef	MATLAB_MEX_FILE
  #include "simulink.c"
#else
  #include "cg_sfun.h"
#endif

/* [EOF] sfun_matadd.c */

/*  File    : sfun_zc_sat.c
 *  Abstract:
 *
 *      Example of an S-function which has nonsampled zero crossings to
 *      implement a saturation function. This S-function is designed to be
 *      used with a variable or fixed step solver.
 *
 *  A saturation is described by three equations
 *
 *    (1)     y = UpperLimit
 *    (2)     y = u
 *    (3)     y = LowerLimit
 *
 *  and a set of inequalities that specify which equation to use
 *
 *    if                          UpperLimit < u    then   use (1)
 *    if       LowerLimit <= u <= UpperLimit        then   use (2)
 *    if   u < LowerLimit                           then   use (3)
 *
 *  A key fact is that the valid equation 1, 2, or 3, can change at
 *  any instant.  Nonsampled zero crossing support helps the variable step
 *  solvers locate the exact instants when behavior switches from one equation
 *  to another.
 *
 *  Copyright 1990-2007 The MathWorks, Inc.
 */


#define S_FUNCTION_NAME  sfun_zc_sat
#define S_FUNCTION_LEVEL 2

#include "simstruc.h"

/*========================*
 * General Defines/macros *
 *========================*/

/* index to Upper Limit */
#define I_PAR_UPPER_LIMIT 0

/* index to Lower Limit */
#define I_PAR_LOWER_LIMIT 1

/* total number of block parameters */
#define N_PAR             2

/*
 *  Make access to mxArray pointers for parameters more readable.
 */
#define P_PAR_UPPER_LIMIT  ( ssGetSFcnParam(S,I_PAR_UPPER_LIMIT) )
#define P_PAR_LOWER_LIMIT  ( ssGetSFcnParam(S,I_PAR_LOWER_LIMIT) )

#define     MDL_CHECK_PARAMETERS
#if defined(MDL_CHECK_PARAMETERS) && defined(MATLAB_MEX_FILE)

  /* Function: mdlCheckParameters =============================================
   * Abstract:
   *   Check that parameter choices are allowable.
   */
  static void mdlCheckParameters(SimStruct *S)
  {
      int_T      i;
      int_T      numUpperLimit;
      int_T      numLowerLimit;
      const char *msg = NULL;

      /*
       * check parameter basics
       */
      for ( i = 0; i < N_PAR; i++ ) {
          if ( mxIsEmpty(    ssGetSFcnParam(S,i) ) ||
               mxIsSparse(   ssGetSFcnParam(S,i) ) ||
               mxIsComplex(  ssGetSFcnParam(S,i) ) ||
               !mxIsNumeric( ssGetSFcnParam(S,i) ) ) {
              msg = "Parameters must be real vectors.";
              goto EXIT_POINT;
          }
      }

      /*
       * Check sizes of parameters.
       */
      numUpperLimit = mxGetNumberOfElements( P_PAR_UPPER_LIMIT );
      numLowerLimit = mxGetNumberOfElements( P_PAR_LOWER_LIMIT );

      if ( ( numUpperLimit != 1             ) &&
           ( numLowerLimit != 1             ) &&
           ( numUpperLimit != numLowerLimit ) ) {
          msg = "Number of input and output values must be equal.";
          goto EXIT_POINT;
      }

      /*
       * Error exit point
       */
  EXIT_POINT:
      if (msg != NULL) {
          ssSetErrorStatus(S, msg);
      }
  }
#endif /* MDL_CHECK_PARAMETERS */

/* Function: mdlInitializeSizes ===============================================
 * Abstract:
 *   Initialize the sizes array.
 */
static void mdlInitializeSizes(SimStruct *S)
{
    int_T numUpperLimit, numLowerLimit, maxNumLimit;

    /*
     * Set and Check parameter count
     */
    ssSetNumSFcnParams(S, N_PAR);

#if defined(MATLAB_MEX_FILE)
    if (ssGetNumSFcnParams(S) == ssGetSFcnParamsCount(S)) {
        mdlCheckParameters(S);
        if (ssGetErrorStatus(S) != NULL) {
            return;
        }
    } else {
        return; /* Parameter mismatch reported by the Simulink engine*/
    }
#endif

    /*
     * Get parameter size info.
     */
    numUpperLimit = mxGetNumberOfElements( P_PAR_UPPER_LIMIT );
    numLowerLimit = mxGetNumberOfElements( P_PAR_LOWER_LIMIT );

    if (numUpperLimit > numLowerLimit) {
        maxNumLimit = numUpperLimit;
    } else {
        maxNumLimit = numLowerLimit;
    }

    /*
     * states
     */
    ssSetNumContStates(S, 0);
    ssSetNumDiscStates(S, 0);

    /*
     * outputs
     *   The upper and lower limits are scalar expanded
     *   so their size determines the size of the output
     *   only if at least one of them is not scalar.
     */
    if (!ssSetNumOutputPorts(S, 1)) return;

    if ( maxNumLimit > 1 ) {
        ssSetOutputPortWidth(S, 0, maxNumLimit);
    } else {
        ssSetOutputPortWidth(S, 0, DYNAMICALLY_SIZED);
    }

    /*
     * inputs
     *   If the upper or lower limits are not scalar then
     *   the input is set to the same size.  However, the
     *   ssSetOptions below allows the actual width to
     *   be reduced to 1 if needed for scalar expansion.
     */
    if (!ssSetNumInputPorts(S, 1)) return;

    ssSetInputPortDirectFeedThrough(S, 0, 1 );

    if ( maxNumLimit > 1 ) {
        ssSetInputPortWidth(S, 0, maxNumLimit);
    } else {
        ssSetInputPortWidth(S, 0, DYNAMICALLY_SIZED);
    }

    /*
     * sample times
     */
    ssSetNumSampleTimes(S, 1);

    /*
     * work
     */
    ssSetNumRWork(S, 0);
    ssSetNumIWork(S, 0);
    ssSetNumPWork(S, 0);


    /*
     * Modes and zero crossings:
     * If we have a variable-step solver and this block has a continuous
     * sample time, then
     *   o One mode element will be needed for each scalar output
     *     in order to specify which equation is valid (1), (2), or (3).
     *   o Two ZC elements will be needed for each scalar output
     *     in order to help the solver find the exact instants
     *     at which either of the two possible "equation switches"
     *     One will be for the switch from eq. (1) to (2);
     *     the other will be for eq. (2) to (3) and vice versa.
     * otherwise
     *   o No modes and nonsampled zero crossings will be used.
     *
     */
    ssSetNumModes(S, DYNAMICALLY_SIZED);
    ssSetNumNonsampledZCs(S, DYNAMICALLY_SIZED);

    /*
     * options
     *   o No mexFunctions and no problematic mxFunctions are called
     *     so the exception free code option safely gives faster simulations.
     *   o Scalar expansion of the inputs is desired.  The option provides
     *     this without the need to  write mdlSetOutputPortWidth and
     *     mdlSetInputPortWidth functions.
     */
    ssSetOptions(S, ( SS_OPTION_EXCEPTION_FREE_CODE |
                      SS_OPTION_ALLOW_INPUT_SCALAR_EXPANSION));

} /* end mdlInitializeSizes */

/* Function: mdlInitializeSampleTimes =========================================
 * Abstract:
 *    Specify that the block is continuous.
 */
static void mdlInitializeSampleTimes(SimStruct *S)
{
    ssSetSampleTime(S, 0, INHERITED_SAMPLE_TIME);
    ssSetOffsetTime(S, 0, 0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);
}

#define     MDL_SET_WORK_WIDTHS
#if defined(MDL_SET_WORK_WIDTHS) && defined(MATLAB_MEX_FILE)
/* Function: mdlSetWorkWidths ===============================================
 *   The width of the Modes and the ZCs depends on the width of the output.
 *   This width is not always known in mdlInitializeSizes so it is handled
 *   here.
 */
static void mdlSetWorkWidths(SimStruct *S)
{
    int nModes;
    int nNonsampledZCs;

    if (ssIsVariableStepSolver(S) &&
        ssGetSampleTime(S,0) == CONTINUOUS_SAMPLE_TIME &&
        ssGetOffsetTime(S,0) == 0.0) {

        int numOutput = ssGetOutputPortWidth(S, 0);

        /*
         * modes and zero crossings
         *    o One mode element will be needed for each scalar output
         *      in order to specify which equation is valid (1), (2), or (3).
         *    o Two ZC elements will be needed for each scalar output
         *      in order to help the solver find the exact instants
         *      at which either of the two possible "equation switches"
         *      One will be for the switch from eq. (1) to (2);
         *      the other will be for eq. (2) to (3) and vice versa.
         */
        nModes         = numOutput;
        nNonsampledZCs = 2 * numOutput;
    } else {
        nModes         = 0;
        nNonsampledZCs = 0;
    }
    ssSetNumModes(S,nModes);
    ssSetNumNonsampledZCs(S,nNonsampledZCs);
}
#endif /* MDL_SET_WORK_WIDTHS */

/* Function: mdlOutputs =======================================================
 * Abstract:
 *
 *  A saturation is described by three equations
 *
 *    (1)     y = UpperLimit
 *    (2)     y = u
 *    (3)     y = LowerLimit
 *
 *  When this block is used with a fixed-step solver or it has a noncontinuous
 *  sample time, the equations are used as it
 *
 *  Now consider the case of this block being used with a variable-step solver
 *  and it has a continuous sample time. Solvers work best on smooth problems.
 *  In order for the solver to work without chattering, limit cycles, or
 *  similar problems, it is absolutely crucial that the same equation be used
 *  throughout the duration of a MajorTimeStep. To visualize this, consider
 *  the case of the Saturation block feeding an Integrator block.
 *
 *  To implement this rule, the mode vector is used to specify the
 *  valid equation based on the following:
 *
 *    if                          UpperLimit < u    then   use (1)
 *    if       LowerLimit <= u <= UpperLimit        then   use (2)
 *    if   u < LowerLimit                           then   use (3)
 *
 *  The mode vector is changed only at the beginning of a MajorTimeStep.
 *
 *  During a minor time step, the equation specified by the mode vector
 *  is used without question.  Most of the time, the value of u will agree
 *  with the equation specified by the mode vector.  However, sometimes u's
 *  value will indicate a different equation.  Nonetheless, the equation
 *  specified by the mode vector must be used.
 *
 *  When the mode and u indicate different equations, the corresponding
 *  calculations are not correct.  However, this is not a problem.  From
 *  the ZC function, the solver will know that an equation switch occurred
 *  in the middle of the last MajorTimeStep.  The calculations for that
 *  time step will be discarded.  The ZC function will help the solver
 *  find the exact instant at which the switch occurred.  Using this knowledge,
 *  the length of the MajorTimeStep will be reduced so that only one equation
 *  is valid throughout the entire time step.
 */
static void mdlOutputs(SimStruct *S, int_T tid)
{
    InputRealPtrsType uPtrs     = ssGetInputPortRealSignalPtrs(S,0);
    real_T            *y        = ssGetOutputPortRealSignal(S,0);
    int_T             numOutput = ssGetOutputPortWidth(S,0);
    int_T             iOutput;

    /*
     * Set index and increment for input signal, upper limit, and lower limit
     * parameters so that each gives scalar expansion if needed.
     */
    int_T  uIdx          = 0;
    int_T  uInc          = ( ssGetInputPortWidth(S,0) > 1 );
    const real_T *upperLimit   = mxGetPr( P_PAR_UPPER_LIMIT );
    int_T  upperLimitInc = ( mxGetNumberOfElements( P_PAR_UPPER_LIMIT ) > 1 );
    const real_T *lowerLimit   = mxGetPr( P_PAR_LOWER_LIMIT );
    int_T  lowerLimitInc = ( mxGetNumberOfElements( P_PAR_LOWER_LIMIT ) > 1 );

    UNUSED_ARG(tid); /* not used in single tasking mode */

    if (ssGetNumNonsampledZCs(S) == 0) {
        /*
         * This block is being used with a fixed-step solver or it has
         * a noncontinuous sample time, so we always saturate.
         */
        for (iOutput = 0; iOutput < numOutput; iOutput++) {
            if (*uPtrs[uIdx] >= *upperLimit) {
                *y++ = *upperLimit;
            } else if (*uPtrs[uIdx] > *lowerLimit) {
                *y++ = *uPtrs[uIdx];
            } else {
                *y++ = *lowerLimit;
            }

            upperLimit += upperLimitInc;
            lowerLimit += lowerLimitInc;
            uIdx       += uInc;
        }

    } else {
        /*
         * This block is being used with a variable-step solver.
         */
        int_T *mode = ssGetModeVector(S);

        /*
         * Specify indices for each equation.
         */
        enum { UpperLimitEquation, NonLimitEquation, LowerLimitEquation };

        /*
         * Update the Mode Vector ONLY at the beginning of a MajorTimeStep
         */
        if ( ssIsMajorTimeStep(S) ) {
            /*
             * Specify the mode, ie the valid equation for each output scalar.
             */
            for ( iOutput = 0; iOutput < numOutput; iOutput++ ) {
                if ( *uPtrs[uIdx] > *upperLimit ) {
                    /*
                     * Upper limit eq is valid.
                     */
                    mode[iOutput] = UpperLimitEquation;
                } else if ( *uPtrs[uIdx] < *lowerLimit ) {
                    /*
                     * Lower limit eq is valid.
                     */
                    mode[iOutput] = LowerLimitEquation;
                } else {
                    /*
                     * Nonlimit eq is valid.
                     */
                    mode[iOutput] = NonLimitEquation;
                }
                /*
                 * Adjust indices to give scalar expansion if needed.
                 */
                uIdx       += uInc;
                upperLimit += upperLimitInc;
                lowerLimit += lowerLimitInc;
            }

            /*
             * Reset index to input and limits.
             */
            uIdx       = 0;
            upperLimit = mxGetPr( P_PAR_UPPER_LIMIT );
            lowerLimit = mxGetPr( P_PAR_LOWER_LIMIT );

        } /* end IsMajorTimeStep */

        /*
         * For both MinorTimeSteps and MajorTimeSteps calculate each scalar
         * output using the equation specified by the mode vector.
         */
        for ( iOutput = 0; iOutput < numOutput; iOutput++ ) {
            if ( mode[iOutput] == UpperLimitEquation ) {
                /*
                 * Upper limit eq.
                 */
                *y++ = *upperLimit;
            } else if ( mode[iOutput] == LowerLimitEquation ) {
                /*
                 * Lower limit eq.
                 */
                *y++ = *lowerLimit;
            } else {
                /*
                 * Nonlimit eq.
                 */
                *y++ = *uPtrs[uIdx];
            }

            /*
             * Adjust indices to give scalar expansion if needed.
             */
            uIdx       += uInc;
            upperLimit += upperLimitInc;
            lowerLimit += lowerLimitInc;
        }
    }
} /* end mdlOutputs */

#define     MDL_ZERO_CROSSINGS
#if defined(MDL_ZERO_CROSSINGS) && (defined(MATLAB_MEX_FILE) || defined(NRT))

/* Function: mdlZeroCrossings =================================================
 * Abstract:
 *  This will only be called if the number of nonsampled zero crossings is
 *  greater than 0 which means this block has a continuous sample time and the
 *  model is using a variable-step solver.
 *
 *  Calculate zero crossing (ZC) signals that help the solver find the
 *  exact instants at which equation switches occur:
 *
 *    if                          UpperLimit < u    then   use (1)
 *    if       LowerLimit <= u <= UpperLimit        then   use (2)
 *    if   u < LowerLimit                           then   use (3)
 *
 *  The key words are help find. There is no choice of a function that will
 *  direct the solver to the exact instant of the change. The solver will
 *  track the zero crossing signal and do a bisection style search for the
 *  exact instant of equation switch.
 *
 *  There is generally one ZC signal for each pair of signals that can
 *  switch.  The three equations above would break into two pairs (1)&(2)
 *  and (2)&(3).  The  possibility of a "long jump" from (1) to (3) does
 *  not need to be handled as a separate case.  It is implicitly handled.
 *
 *  When ZCs are calculated, the value is normally used twice.  When it is
 *  first calculated, it is used as the end of the current time step.  Later,
 *  it will be used as the beginning of the following step.
 *
 *  The sign of the ZC signal always indicates an equation from the pair.  For
 *  S-functions, which equation is associated with a positive ZC and which is
 *  associated with a negative ZC doesn't really matter.  If the ZC is positive
 *  at the beginning and at the end of the time step, this implies that the
 *  "positive" equation was valid throughout the time step.  Likewise, if the
 *  ZC is negative at the beginning and at the end of the time step, this
 *  implies that the "negative" equation was valid throughout the time step.
 *  Like any other nonlinear solver, this is not foolproof, but it is an
 *  excellent indicator.  If the ZC has a different sign at the beginning and
 *  at the end of the time step, then a equation switch definitely occurred
 *  during the time step.
 *
 *  Ideally, the ZC signal gives an estimate of when an equation switch
 *  occurred.  For example, if the ZC signal is -2 at the beginning and +6 at
 *  the end, then this suggests that the switch occurred
 *  25% = 100%*(-2)/(-2-(+6)) of the way into the time step.  It will almost
 *  never be true that 25% is perfectly correct.  There is no perfect choice
 *  for a ZC signal, but there are some good rules.  First, choose the ZC
 *  signal to be continuous.  Second, choose the ZC signal to give a monotonic
 *  measure of the "distance" to a signal switch; strictly monotonic is ideal.
 */
static void mdlZeroCrossings(SimStruct *S)
{
    int_T             iOutput;
    int_T             numOutput = ssGetOutputPortWidth(S,0);
    real_T            *zcSignals = ssGetNonsampledZCs(S);
    InputRealPtrsType uPtrs      = ssGetInputPortRealSignalPtrs(S,0);

    /*
     * Set index and increment for the input signal, upper limit, and lower
     * limit parameters so that each gives scalar expansion if needed.
     */
    int_T  uIdx          = 0;
    int_T  uInc          = ( ssGetInputPortWidth(S,0) > 1 );
    real_T *upperLimit   = mxGetPr( P_PAR_UPPER_LIMIT );
    int_T  upperLimitInc = ( mxGetNumberOfElements( P_PAR_UPPER_LIMIT ) > 1 );
    real_T *lowerLimit   = mxGetPr( P_PAR_LOWER_LIMIT );
    int_T  lowerLimitInc = ( mxGetNumberOfElements( P_PAR_LOWER_LIMIT ) > 1 );

    /*
     * For each output scalar, give the solver a measure of "how close things
     * are" to an equation switch.
     */
    for ( iOutput = 0; iOutput < numOutput; iOutput++ ) {

        /*  The switch from eq (1) to eq (2)
         *
         *    if                          UpperLimit < u    then   use (1)
         *    if       LowerLimit <= u <= UpperLimit        then   use (2)
         *
         *  is related to how close u is to UpperLimit.  A ZC choice
         *  that is continuous, strictly monotonic, and is
         *    u - UpperLimit
         *  or it is negative.
         */
        zcSignals[2*iOutput] = *uPtrs[uIdx] - *upperLimit;

        /*  The switch from eq (2) to eq (3)
         *
         *    if       LowerLimit <= u <= UpperLimit        then   use (2)
         *    if   u < LowerLimit                           then   use (3)
         *
         *  is related to how close u is to LowerLimit.  A ZC choice
         *  that is continuous, strictly monotonic, and is
         *    u - LowerLimit.
         */
        zcSignals[2*iOutput+1] = *uPtrs[uIdx] - *lowerLimit;

        /*
         * Adjust indices to give scalar expansion if needed.
         */
        uIdx       += uInc;
        upperLimit += upperLimitInc;
        lowerLimit += lowerLimitInc;
    }
}

#endif /* end mdlZeroCrossings */

/* Function: mdlTerminate =====================================================
 * Abstract:
 *    No termination needed, but we are required to have this routine.
 */
static void mdlTerminate(SimStruct *S)
{
    UNUSED_ARG(S); /* unused input argument */
}

#ifdef  MATLAB_MEX_FILE    /* Is this file being compiled as a MEX file? */
#include "simulink.c"      /* MEX file interface mechanism */
#else
#include "cg_sfun.h"       /* Code generation registration function */
#endif

/*
 * File : stvctf.c
 * Abstract:
 *      Time Varying Continuous Transfer Function block
 *
 *      This S-function implements a continuous time transfer function
 *      whose transfer function polynomials are passed in via the input
 *      vector.  This is useful for continuous time adaptive control
 *      applications.
 *
 *      This S-function is also an example of how to use banks to avoid
 *      problems with computing derivatives when a continuous output has
 *      discontinuities. The consistency checker can be used to verify that
 *      your S-function is correct with respect to always maintaining smooth
 *      and consistent signals for the integrators. By consistent we mean that
 *      two mdlOutputs calls at major time t and minor time t are always the
 *      same. The consistency checker is enabled on the diagnostics page of the
 * 		Configuraion parameters dialog box. The update method of this S-function
 *      modifies the coefficients of the transfer function, which cause the
 *      output to "jump." To have the simulation work properly, we need to let
 *      the solver know of these discontinuities by setting
 *      ssSetSolverNeedsReset and then we need to use multiple banks of
 *      coefficients so the coefficients used in the major time step output
 *      and the minor time step outputs are the same. In the simulation loop
 *      we have:
 *        Loop:
 *          o Output in major time step at time t
 *          o Update in major time step at time t
 *          o Integrate (minor time step):
 *              o Consistency check: recompute outputs at time t and compare
 *                with current outputs.
 *              o Derivatives at time t
 *              o One or more Output,Derivative evaluations at time t+k
 *                where k <= step_size to be taken.
 *              o Compute state, x
 *              o t = t + step_size
 *            End_Integrate
 *        End_Loop
 *      Another purpose of the consistency checker is to verify that when
 *      the solver needs to try a smaller step_size, the recomputing of
 *      the output and derivatives at time t doesn't change. Step size
 *      reduction occurs when tolerances aren't met for the current step size.
 *      The ideal ordering would be to update after integrate. To achieve
 *      this we have two banks of coefficients. And the use of the new
 *      coefficients, which were computed in update, is delayed until after
 *      the integrate phase is complete.
 *
 *	This block has multiple sample times and will not work correctly
 *	in a multitasking environment. It is designed to be used in
 *	a single tasking (or variable step) simulation environment.
 *	Because this block accesses the input signal in both tasks,
 *	it cannot specify the sample times of the input and output ports
 *	(SS_OPTION_PORT_SAMPLE_TIMES_ASSIGNED).
 *
 * See simulink/src/sfuntmpl_doc.c.
 *
 * Copyright 1990-7 The MathWorks, Inc.
 */

#define S_FUNCTION_NAME  stvctf
#define S_FUNCTION_LEVEL 2

#include "simstruc.h"

/*
 * Defines for easy access to the numerator and denominator polynomials
 * parameters
 */
#define NUM(S)  ssGetSFcnParam(S, 0)
#define DEN(S)  ssGetSFcnParam(S, 1)
#define TS(S)   ssGetSFcnParam(S, 2)
#define NPARAMS 3

#define MDL_CHECK_PARAMETERS
#if defined(MDL_CHECK_PARAMETERS) && defined(MATLAB_MEX_FILE)
  /* Function: mdlCheckParameters =============================================
   * Abstract:
   *    Validate our parameters to verify:
   *     o The numerator must be of a lower order than the denominator.
   *     o The sample time must be a real positive nonzero value.
   */
  static void mdlCheckParameters(SimStruct *S)
  {
      int_T i;

      for (i = 0; i < NPARAMS; i++) {
          real_T *pr;
          int_T   el;
          int_T   nEls;
          if (mxIsEmpty(    ssGetSFcnParam(S,i)) ||
              mxIsSparse(   ssGetSFcnParam(S,i)) ||
              mxIsComplex(  ssGetSFcnParam(S,i)) ||
              !mxIsNumeric( ssGetSFcnParam(S,i)) ) {
              ssSetErrorStatus(S,"Parameters must be real finite vectors");
              return;
          }
          pr   = mxGetPr(ssGetSFcnParam(S,i));
          nEls = mxGetNumberOfElements(ssGetSFcnParam(S,i));
          for (el = 0; el < nEls; el++) {
              if (!mxIsFinite(pr[el])) {
                  ssSetErrorStatus(S,"Parameters must be real finite vectors");
                  return;
              }
          }
      }

      if (mxGetNumberOfElements(NUM(S)) > mxGetNumberOfElements(DEN(S)) &&
          mxGetNumberOfElements(DEN(S)) > 0  && *mxGetPr(DEN(S)) != 0.0) {
          ssSetErrorStatus(S,"The denominator must be of higher order than "
                           "the numerator, nonempty and with first "
                           "element nonzero");
          return;
      }

      /* xxx verify finite */
      if (mxGetNumberOfElements(TS(S)) != 1 || mxGetPr(TS(S))[0] <= 0.0) {
          ssSetErrorStatus(S,"Invalid sample time specified");
          return;
      }
  }
#endif /* MDL_CHECK_PARAMETERS */

/* Function: mdlInitializeSizes ===============================================
 * Abstract:
 *    Determine the S-function block's characteristics:
 *    number of inputs, outputs, states, etc.
 */
static void mdlInitializeSizes(SimStruct *S)
{
    int_T nContStates;
    int_T nCoeffs;

    /* See sfuntmpl_doc.c for more details on the macros below. */

    ssSetNumSFcnParams(S, NPARAMS);  /* Number of expected parameters. */
#if defined(MATLAB_MEX_FILE)
    if (ssGetNumSFcnParams(S) == ssGetSFcnParamsCount(S)) {
        mdlCheckParameters(S);
        if (ssGetErrorStatus(S) != NULL) {
            return;
        }
    } else {
        return; /* Parameter mismatch reported by the Simulink engine*/
    }
#endif


    /*
     * Define the characteristics of the block:
     *
     *   Number of continuous states:     length of denominator - 1
     *   Inputs port width                2 * (NumContStates+1) + 1
     *   Output port width                1
     *   DirectFeedThrough:               0 (Although this should be computed.
     *                                       We'll assume coefficients entered
     *                                       are strictly proper).
     *   Number of sample times:          2 (continuous and discrete)
     *   Number of Real work elements:    4*NumCoeffs
     *                                    (Two banks for num and den coeff's:
     *                                     NumBank0Coeffs
     *                                     DenBank0Coeffs
     *                                     NumBank1Coeffs
     *                                     DenBank1Coeffs)
     *   Number of Integer work elements: 2 (indicator of active bank 0 or 1
     *                                       and flag to indicate when banks
     *                                       have been updated).
     *
     * The number of inputs arises from the following:
     *   o 1 input (u)
     *   o the numerator and denominator polynomials each have NumContStates+1
     *     coefficients
     */
    nCoeffs     = mxGetNumberOfElements(DEN(S));
    nContStates = nCoeffs - 1;

    ssSetNumContStates(S, nContStates);
    ssSetNumDiscStates(S, 0);

    if (!ssSetNumInputPorts(S, 1)) return;
    ssSetInputPortWidth(S, 0, 1 + (2*nCoeffs));
    ssSetInputPortDirectFeedThrough(S, 0, 0);
    ssSetInputPortSampleTime(S, 0, mxGetPr(TS(S))[0]);
    ssSetInputPortOffsetTime(S, 0, 0);

    if (!ssSetNumOutputPorts(S,1)) return;
    ssSetOutputPortWidth(S, 0, 1);
    ssSetOutputPortSampleTime(S, 0, CONTINUOUS_SAMPLE_TIME);
    ssSetOutputPortOffsetTime(S, 0, 0);

    ssSetNumSampleTimes(S, 2);

    ssSetNumRWork(S, 4 * nCoeffs);
    ssSetNumIWork(S, 2);
    ssSetNumPWork(S, 0);

    ssSetNumModes(S, 0);
    ssSetNumNonsampledZCs(S, 0);

    /* Take care when specifying exception free code - see sfuntmpl_doc.c */
    ssSetOptions(S, (SS_OPTION_EXCEPTION_FREE_CODE));

} /* end mdlInitializeSizes */

/* Function: mdlInitializeSampleTimes =========================================
 * Abstract:
 *      This function is used to specify the sample time(s) for the
 *      S-function.  This S-function has two sample times.  The
 *      first, a continuous sample time, is used for the input to the
 *      transfer function, u.  The second, a discrete sample time
 *      provided by the user, defines the rate at which the transfer
 *      function coefficients are updated.
 */
static void mdlInitializeSampleTimes(SimStruct *S)
{
    /*
     * the first sample time, continuous
     */
    ssSetSampleTime(S, 0, CONTINUOUS_SAMPLE_TIME);
    ssSetOffsetTime(S, 0, 0.0);

    /*
     * the second, discrete sample time, is user provided
     */
    ssSetSampleTime(S, 1, mxGetPr(TS(S))[0]);
    ssSetOffsetTime(S, 1, 0.0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);


} /* end mdlInitializeSampleTimes */

#define MDL_INITIALIZE_CONDITIONS
/* Function: mdlInitializeConditions ==========================================
 * Abstract:
 *      Initialize the states, numerator and denominator coefficients.
 */
static void mdlInitializeConditions(SimStruct *S)
{
    int_T  i;
    int_T  nContStates = ssGetNumContStates(S);
    real_T *x0           = ssGetContStates(S);
    int_T  nCoeffs       = nContStates + 1;
    real_T *numBank0     = ssGetRWork(S);
    real_T *denBank0     = numBank0 + nCoeffs;
    int_T *activeBank    = ssGetIWork(S);

    /*
     * The continuous states are all initialized to zero.
     */
    for (i = 0; i < nContStates; i++) {
        x0[i]       = 0.0;
        numBank0[i] = 0.0;
        denBank0[i] = 0.0;
    }
    numBank0[nContStates] = 0.0;
    denBank0[nContStates] = 0.0;

    /*
     * Set up the initial numerator and denominator.
     */
    {
        const real_T *numParam   = mxGetPr(NUM(S));
        int          numParamLen = mxGetNumberOfElements(NUM(S));

        const real_T *denParam   = mxGetPr(DEN(S));
        int          denParamLen = mxGetNumberOfElements(DEN(S));
        real_T       den0        = denParam[0];

        for (i = 0; i < denParamLen; i++) {
            denBank0[i] = denParam[i] / den0;
        }

        for (i = 0; i < numParamLen; i++) {
            numBank0[i] = numParam[i] / den0;
        }
    }

    /*
     * Normalize if this transfer function has direct feedthrough.
     */
    for (i = 1; i < nCoeffs; i++) {
        numBank0[i] -= denBank0[i]*numBank0[0];
    }

    /*
     * Indicate bank0 is active (i.e. bank1 is oldest).
     */
    *activeBank = 0;

} /* end mdlInitializeConditions */

/* Function: mdlOutputs =======================================================
 * Abstract:
 *      The outputs for this block are computed by using a controllable state-
 *      space representation of the transfer function.
 */
static void mdlOutputs(SimStruct *S, int_T tid)
{
    if (ssIsContinuousTask(S,tid)) {
        int               i;
        real_T            *num;
        int               nContStates = ssGetNumContStates(S);
        real_T            *x          = ssGetContStates(S);
        int_T             nCoeffs     = nContStates + 1;
        InputRealPtrsType uPtrs       = ssGetInputPortRealSignalPtrs(S,0);
        real_T            *y          = ssGetOutputPortRealSignal(S,0);
        int_T             *activeBank = ssGetIWork(S);

        /*
         * Switch banks because we've updated them in mdlUpdate and we're no
         * longer in a minor time step.
         */
        if (ssIsMajorTimeStep(S)) {
            int_T *banksUpdated = ssGetIWork(S) + 1;
            if (*banksUpdated) {
                *activeBank = !(*activeBank);
                *banksUpdated = 0;
                /*
                 * Need to tell the solvers that the derivatives are no
                 * longer valid.
                 */
                ssSetSolverNeedsReset(S);
            }
        }
        num = ssGetRWork(S) + (*activeBank) * (2*nCoeffs);

        /*
         * The continuous system is evaluated using a controllable state space
         * representation of the transfer function.  This implies that the
         * output of the system is equal to:
         *
         *     y(t) = Cx(t) + Du(t)
         *          = [ b1 b2 ... bn]x(t) + b0u(t)
         *
         * where b0, b1, b2, ... are the coefficients of the numerator
         * polynomial:
         *
         *    B(s) = b0 s^n + b1 s^n-1 + b2 s^n-2 + ... + bn-1 s + bn
         */
        *y = *num++ * (*uPtrs[0]);
        for (i = 0; i < nContStates; i++) {
            *y += *num++ * *x++;
        }
    }

} /* end mdlOutputs */

#define MDL_UPDATE
/* Function: mdlUpdate ========================================================
 * Abstract:
 *      Every time through the simulation loop, update the
 *      transfer function coefficients. Here we update the oldest bank.
 */
static void mdlUpdate(SimStruct *S, int_T tid)
{
    if (ssIsSampleHit(S, 1, tid)) {
        int_T             i;
        InputRealPtrsType uPtrs        = ssGetInputPortRealSignalPtrs(S,0);
        int_T             uIdx         = 1;/*1st coeff is after signal input*/
        int_T             nContStates  = ssGetNumContStates(S);
        int_T             nCoeffs      = nContStates + 1;
        int_T             bankToUpdate = !ssGetIWork(S)[0];
        real_T            *num         = ssGetRWork(S)+bankToUpdate*2*nCoeffs;
        real_T            *den         = num + nCoeffs;

        real_T            den0;
        int_T             allZero;


        /*
         * Get the first denominator coefficient.  It will be used
         * for normalizing the numerator and denominator coefficients.
         *
         * If all inputs are zero, we probably could have unconnected
         * inputs, so use the parameter as the first denominator coefficient.
         */
        den0 = *uPtrs[uIdx+nCoeffs];
        if (den0 == 0.0) {
            den0 = mxGetPr(DEN(S))[0];
        }

        /*
         * Grab the numerator.
         */
        allZero = 1;
        for (i = 0; (i < nCoeffs) && allZero; i++) {
            allZero &= *uPtrs[uIdx+i] == 0.0;
        }

        if (allZero) { /* if numerator is all zero */
            const real_T *numParam   = mxGetPr(NUM(S));
            int_T        numParamLen = mxGetNumberOfElements(NUM(S));
            /*
             * Move the input to the denominator input and
             * get the denominator from the input parameter.
             */
            uIdx += nCoeffs;
            num += nCoeffs - numParamLen;
            for (i = 0; i < numParamLen; i++) {
                *num++ = *numParam++ / den0;
            }
        } else {
            for (i = 0; i < nCoeffs; i++) {
                *num++ = *uPtrs[uIdx++] / den0;
            }
        }

        /*
         * Grab the denominator.
         */
        allZero = 1;
        for (i = 0; (i < nCoeffs) && allZero; i++) {
            allZero &= *uPtrs[uIdx+i] == 0.0;
        }

        if (allZero) {  /* If denominator is all zero. */
            const real_T *denParam   = mxGetPr(DEN(S));
            int_T        denParamLen = mxGetNumberOfElements(DEN(S));

            den0 = denParam[0];
            for (i = 0; i < denParamLen; i++) {
                *den++ = *denParam++ / den0;
            }
        } else {
            for (i = 0; i < nCoeffs; i++) {
                *den++ = *uPtrs[uIdx++] / den0;
            }
        }

        /*
         * Normalize if this transfer function has direct feedthrough.
         */
        num = ssGetRWork(S) + bankToUpdate*2*nCoeffs;
        den = num + nCoeffs;
        for (i = 1; i < nCoeffs; i++) {
            num[i] -= den[i]*num[0];
        }

        /*
         * Indicate oldest bank has been updated.
         */
        ssGetIWork(S)[1] = 1;
    }

} /* end mdlUpdate */

#define MDL_DERIVATIVES
/* Function: mdlDerivatives ===================================================
 * Abstract:
 *      The derivatives for this block are computed by using a controllable
 *      state-space representation of the transfer function.
 */
static void mdlDerivatives(SimStruct *S)
{
    int_T             i;
    int_T             nContStates = ssGetNumContStates(S);
    real_T            *x          = ssGetContStates(S);
    real_T            *dx         = ssGetdX(S);
    int_T             nCoeffs     = nContStates + 1;
    int_T             activeBank  = ssGetIWork(S)[0];
    const real_T      *num        = ssGetRWork(S) + activeBank*(2*nCoeffs);
    const real_T      *den        = num + nCoeffs;
    InputRealPtrsType uPtrs       = ssGetInputPortRealSignalPtrs(S,0);

    /*
     * The continuous system is evaluated using a controllable state-space
     * representation of the transfer function.  This implies that the
     * next continuous states are computed using:
     *
     *     dx = Ax(t) + Bu(t)
     *        = [-a1 -a2 ... -an] [x1(t)] + [u(t)]
     *          [  1  0  ...   0] [x2(t)] + [0]
     *          [  0  1  ...   0] [x3(t)] + [0]
     *          [  .  .  ...   .]   .     +  .
     *          [  .  .  ...   .]   .     +  .
     *          [  .  .  ...   .]   .     +  .
     *          [  0  0  ... 1 0] [xn(t)] + [0]
     *
     * where a1, a2, ... are the coefficients of the numerator polynomial:
     *
     *    A(s) = s^n + a1 s^n-1 + a2 s^n-2 + ... + an-1 s + an
     */
    dx[0] = -den[1] * x[0] + *uPtrs[0];
    for (i = 1; i < nContStates; i++) {
        dx[i] = x[i-1];
        dx[0] -= den[i+1] * x[i];
    }

} /* end mdlDerivatives */

/* Function: mdlTerminate =====================================================
 * Abstract:
 *      Called when the simulation is terminated.
 *      For this block, there are no end of simulation tasks.
 */
static void mdlTerminate(SimStruct *S)
{
    UNUSED_ARG(S); /* unused input argument */
} /* end mdlTerminate */

#ifdef  MATLAB_MEX_FILE    /* Is this file being compiled as a MEX file? */
#include "simulink.c"      /* MEX file interface mechanism */
#else
#include "cg_sfun.h"       /* Code generation registration function */
#endif
