% Upsample by replicating neighbouring pixel values.

% Copyright 2020 The MathWorks, Inc.

classdef upsampleBy2Layer < nnet.layer.Layer
    properties (Constant)
        % factor to upsample the input.
        UpSampleFactor = 2
    end

    methods
        function layer = upsampleBy2Layer(name)

            % Set layer name.
            layer.Name = name;

            % Set layer description.
            layer.Description = "upSamplingLayer with factor " + layer.UpSampleFactor;

        end

        function Z = predict(layer, X)
            % Z = predict(layer, X) forwards the input data X through the
            % layer and outputs the result Z.
            if coder.target('MATLAB')
                Z = repelem(X,layer.UpSampleFactor,layer.UpSampleFactor);
            else
                numChannels = size(X, 3);
                numBatches = size(X, 4);
                Zsize = coder.const([size(X, 1) size(X, 2) numChannels numBatches] .* [layer.UpSampleFactor layer.UpSampleFactor 1 1]);
                Z = coder.nullcopy(zeros(Zsize, 'like', X));

                coder.gpu.kernel(-1, -1);
                for iBatch = 1:numBatches
                    for iChannel = 1:numChannels
                        Z(:, :, iChannel, iBatch) = repelem(X(:, :, iChannel, iBatch), layer.UpSampleFactor, layer.UpSampleFactor);
                    end
                end
            end
        end
    end
end

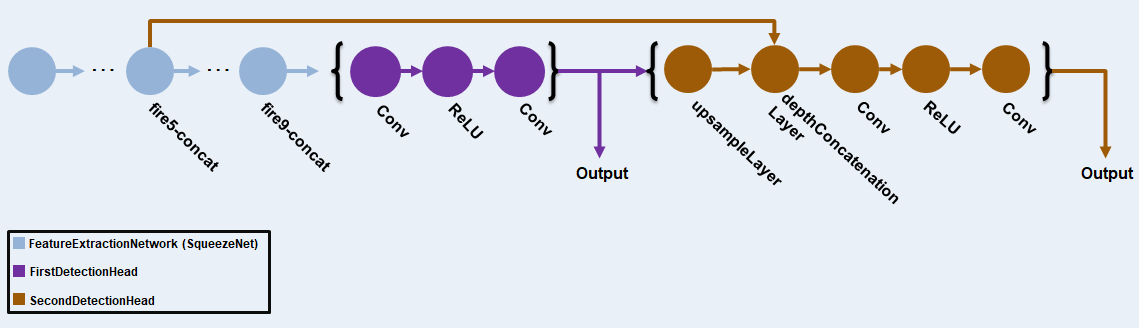

dagNet =
  DAGNetwork with properties:

         Layers: [72×1 nnet.cnn.layer.Layer]
    Connections: [80×2 table]
     InputNames: {'data'}
    OutputNames: {'conv2Detection1_output_1'  'conv2Detection2_output_2'}

function [bboxes,scores,labels] = yolov3Detect(matFile, im, networkInputSize, networkOutputs, confidenceThreshold, overlapThreshold, classes)
% The yolov3Detect function detects the bounding boxes, scores, and labels in an image.
coder.extrinsic('generateYOLOv3Detections');

%% Preprcess Data
% This example applies all the preprocessing transforms to the data set
% applied during training, except data augmentation. Because the example
% uses a pretrained YOLO v3 network, the input data must be representative
% of the original data and left unmodified for unbiased evaluation.

% Specifically the following preprocessing operations are applied to the
% input data.
%     1. Resize the images to the network input size, as the images are bigger than networkInputSize.
%     2. Scale the image pixels in the range [0 1].

im = preprocessData(im, networkInputSize);
imageSize = size(im,[1,2]);

%% Define Anchor Boxes
% Specify the anchor boxes estimated on the basis of the preprocessed
% training data used when training the YOLO v3 network. These anchor box
% values are same as mentioned in
% <docid:vision_ug#mw_47d9a223-5ec7-4d36-a020-4f9d147ecdec Object Detection
% Using YOLO v3 Deep Learning> example. For details on estimating anchor
% boxes, see <docid:vision_ug#mw_f9f22f48-0ad0-4f37-8bc1-22a2046637f2
% Anchor Boxes for Object Detection>.

anchors = [150   127;
    97    90;
    68    67;
    38    42;
    41    29;
    31    23];

% Specify anchorBoxMasks to select anchor boxes to use in both the
% detection heads of the YOLO v3 network. anchorBoxMasks is a cell array of
% size M-by-1, where M denotes the number of detection heads. Each
% detection head consists of a 1-by-N array of row index of anchors in
% anchorBoxes, where N is the number of anchor boxes to use. Select anchor
% boxes for each detection head based on size-use larger anchor boxes at
% lower scale and smaller anchor boxes at higher scale. To do so, sort the
% anchor boxes with the larger anchor boxes first and assign the first
% three to the first detection head and the next three to the second
% detection head.

area = anchors(:, 1).*anchors(:, 2);
[~, idx] = sort(area, 'descend');
anchors = anchors(idx, :);
anchorBoxMasks = {[1,2,3]
    [4,5,6]
    };

%% Predict on Yolov3
% Predict and filter the detections based on confidence threshold.
predictions = yolov3Predict(matFile,im,networkOutputs,anchorBoxMasks);

%% Generate Detections
anchorIndex = 2:5; % indices corresponding to x,y,w,h predictions for bounding boxes
tiledAnchors = generateTiledAnchors(predictions,anchors,anchorBoxMasks,anchorIndex);
predictions = applyAnchorBoxOffsets(tiledAnchors, predictions, networkInputSize, anchorIndex);
[bboxes,scores,labels] = generateYOLOv3Detections(predictions, confidenceThreshold, overlapThreshold, imageSize, classes);

% Apply suppression to the detections to filter out multiple overlapping
% detections.
if ~isempty(scores)
    [bboxes, scores, labels] = selectStrongestBboxMulticlass(bboxes, scores, labels ,...
        'RatioType', 'Union', 'OverlapThreshold', overlapThreshold);
end
end

function YPredCell = yolov3Predict(matFile,im,networkOutputs,anchorBoxMask)
% Predict the output of network and extract the confidence, x, y,
% width, height, and class.

% load the deep learning network for prediction
persistent net;

if isempty(net)
    net = coder.loadDeepLearningNetwork(matFile);
end

YPredictions = cell(size(networkOutputs));
[YPredictions{:}] = predict(net, im);
YPredCell = extractPredictions(YPredictions, anchorBoxMask);

% Apply activation to the predicted cell array.
YPredCell = applyActivations(YPredCell);
end

Code generation successful: View report

function YPredCell = applyActivations(YPredCell)
for idx = 1:3
    YPredCell{:, idx} = sigmoidActivation(YPredCell{:,idx});
end
for idx = 4:5
    YPredCell{:, idx} = exp(YPredCell{:, idx});
end
YPredCell{:, 6} = sigmoidActivation(YPredCell{:, 6});
end

function out = sigmoidActivation(x)
out = 1./(1+exp(-x));
end

function predictions = extractPredictions(YPredictions, anchorBoxMask)
predictions = cell(size(YPredictions, 1),6);
for ii = 1:size(YPredictions, 1)
    numAnchors = size(anchorBoxMask{ii},2);
    % Confidence scores.
    startIdx = 1;
    endIdx = numAnchors;
    predictions{ii,1} = YPredictions{ii}(:,:,startIdx:endIdx,:);

    % X positions.
    startIdx = startIdx + numAnchors;
    endIdx = endIdx+numAnchors;
    predictions{ii,2} = YPredictions{ii}(:,:,startIdx:endIdx,:);

    % Y positions.
    startIdx = startIdx + numAnchors;
    endIdx = endIdx+numAnchors;
    predictions{ii,3} = YPredictions{ii}(:,:,startIdx:endIdx,:);

    % Width.
    startIdx = startIdx + numAnchors;
    endIdx = endIdx+numAnchors;
    predictions{ii,4} = YPredictions{ii}(:,:,startIdx:endIdx,:);

    % Height.
    startIdx = startIdx + numAnchors;
    endIdx = endIdx+numAnchors;
    predictions{ii,5} = YPredictions{ii}(:,:,startIdx:endIdx,:);

    % Class probabilities.
    startIdx = startIdx + numAnchors;
    predictions{ii,6} = YPredictions{ii}(:,:,startIdx:end,:);
end
end

function tiledAnchors = generateTiledAnchors(YPredCell,anchorBoxes,anchorBoxMask,anchorIndex)
% Generate tiled anchor offset for converting the predictions from the YOLO
% v3 grid cell coordinates to bounding box coordinates

tiledAnchors = cell(size(anchorIndex));
for i=1:size(YPredCell,1)
    anchors = anchorBoxes(anchorBoxMask{i}, :);
    [h,w,~,n] = size(YPredCell{i,1});
    [tiledAnchors{i,2}, tiledAnchors{i,1}] = ndgrid(0:h-1,0:w-1,1:size(anchors,1),1:n);
    [~,~,tiledAnchors{i,3}] = ndgrid(0:h-1,0:w-1,anchors(:,2),1:n);
    [~,~,tiledAnchors{i,4}] = ndgrid(0:h-1,0:w-1,anchors(:,1),1:n);
end
end

function YPredCell = applyAnchorBoxOffsets(tiledAnchors,YPredCell,inputImageSize,anchorIndex)
% Convert the predictions from the YOLO v3 grid cell coordinates to bounding box coordinates
for i=1:size(YPredCell,1)
    [h,w,~,~] = size(YPredCell{i,1});
    YPredCell{i,anchorIndex(1)} = (tiledAnchors{i,1}+YPredCell{i,anchorIndex(1)})./w;
    YPredCell{i,anchorIndex(2)} = (tiledAnchors{i,2}+YPredCell{i,anchorIndex(2)})./h;
    YPredCell{i,anchorIndex(3)} = (tiledAnchors{i,3}.*YPredCell{i,anchorIndex(3)})./inputImageSize(2);
    YPredCell{i,anchorIndex(4)} = (tiledAnchors{i,4}.*YPredCell{i,anchorIndex(4)})./inputImageSize(1);
end
end

function image = preprocessData(image, targetSize)
% Resize the images and scale the pixels to between 0 and 1.

imgSize = size(image);

% Convert an input image with single channel to 3 channels.
if numel(imgSize) == 1
    image = repmat(image,1,1,3);
end
image = im2single(imresize(image, coder.const(targetSize(1:2))));

end
