Оптимизируйте типы данных системы
В этом примере показано, как оптимизировать типы данных, используемые системой, на основе заданных допусков.

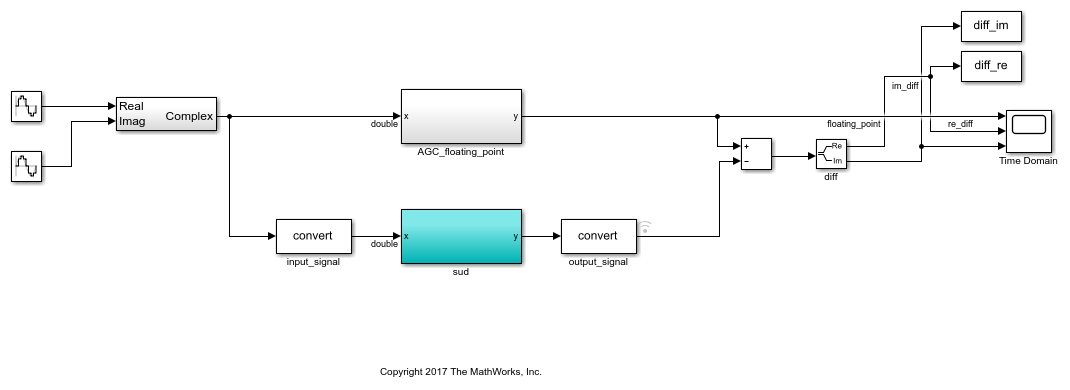

Чтобы начать, откройте систему, для которой вы хотите оптимизировать типы данных.
model = 'ex_auto_gain_controller'; sud = 'ex_auto_gain_controller/sud'; open_system(model)
Создайте fxpOptimizationOptions объект для определения ограничений и допусков в соответствии с целями проекта. Установите UseParallel свойство fxpOptimizationOptions объект к true чтобы запустить итерации оптимизации параллельно. Можно также задать размеры слова, чтобы разрешить в проекте через AllowableWordLengths свойство.
opt = fxpOptimizationOptions('AllowableWordLengths', 10:24, 'UseParallel', true)
opt =
fxpOptimizationOptions with properties:
MaxIterations: 50
MaxTime: 600
Patience: 10
Verbosity: High
AllowableWordLengths: [10 11 12 13 14 15 16 17 18 19 20 21 22 23 24]
UseParallel: 1
Advanced Options
AdvancedOptions: [1×1 struct]
Используйте addTolerance метод для определения допусков для различий между исходным поведением системы и поведением с помощью оптимизированных типов данных с фиксированной точкой.
tol = 10e-2; addTolerance(opt, [model '/output_signal'], 1, 'AbsTol', tol);
Используйте fxpopt функция для запуска оптимизации. Программа анализирует области значений объектов в вашей системе в процессе проекта и ограничения, указанные в fxpOptimizationOptions объект для применения гетерогенных типов данных к системе при минимизации общей ширины бит.
result = fxpopt(model, sud, opt);
Starting parallel pool (parpool) using the 'local' profile ... Connected to the parallel pool (number of workers: 4). + Preprocessing + Modeling the optimization problem - Constructing decision variables + Running the optimization solver Analyzing and transferring files to the workers ...done. - Evaluating new solution: cost 180, does not meet the tolerances. - Evaluating new solution: cost 198, does not meet the tolerances. - Evaluating new solution: cost 216, does not meet the tolerances. - Evaluating new solution: cost 234, does not meet the tolerances. - Evaluating new solution: cost 252, does not meet the tolerances. - Evaluating new solution: cost 270, does not meet the tolerances. - Evaluating new solution: cost 288, does not meet the tolerances. - Evaluating new solution: cost 306, meets the tolerances. - Evaluating new solution: cost 324, meets the tolerances. - Evaluating new solution: cost 342, meets the tolerances. - Evaluating new solution: cost 360, meets the tolerances. - Evaluating new solution: cost 378, meets the tolerances. - Evaluating new solution: cost 396, meets the tolerances. - Evaluating new solution: cost 414, meets the tolerances. - Evaluating new solution: cost 432, meets the tolerances. - Updated best found solution, cost: 306 - Evaluating new solution: cost 304, meets the tolerances. - Evaluating new solution: cost 304, meets the tolerances. - Evaluating new solution: cost 301, meets the tolerances. - Evaluating new solution: cost 305, does not meet the tolerances. - Evaluating new solution: cost 305, meets the tolerances. - Evaluating new solution: cost 301, meets the tolerances. - Evaluating new solution: cost 299, meets the tolerances. - Evaluating new solution: cost 299, meets the tolerances. - Evaluating new solution: cost 296, meets the tolerances. - Evaluating new solution: cost 299, meets the tolerances. - Evaluating new solution: cost 291, meets the tolerances. - Evaluating new solution: cost 296, does not meet the tolerances. - Evaluating new solution: cost 299, meets the tolerances. - Evaluating new solution: cost 300, meets the tolerances. - Evaluating new solution: cost 296, does not meet the tolerances. - Evaluating new solution: cost 301, meets the tolerances. - Evaluating new solution: cost 303, meets the tolerances. - Evaluating new solution: cost 299, meets the tolerances. - Evaluating new solution: cost 304, does not meet the tolerances. - Evaluating new solution: cost 300, meets the tolerances. - Updated best found solution, cost: 304 - Updated best found solution, cost: 301 - Updated best found solution, cost: 299 - Updated best found solution, cost: 296 - Updated best found solution, cost: 291 - Evaluating new solution: cost 280, meets the tolerances. - Evaluating new solution: cost 287, meets the tolerances. - Evaluating new solution: cost 288, does not meet the tolerances. - Evaluating new solution: cost 287, does not meet the tolerances. - Evaluating new solution: cost 283, meets the tolerances. - Evaluating new solution: cost 283, does not meet the tolerances. - Evaluating new solution: cost 262, does not meet the tolerances. - Evaluating new solution: cost 283, does not meet the tolerances. - Evaluating new solution: cost 282, does not meet the tolerances. - Evaluating new solution: cost 288, meets the tolerances. - Evaluating new solution: cost 289, meets the tolerances. - Evaluating new solution: cost 288, meets the tolerances. - Evaluating new solution: cost 290, meets the tolerances. - Evaluating new solution: cost 281, does not meet the tolerances. - Evaluating new solution: cost 286, does not meet the tolerances. - Evaluating new solution: cost 287, meets the tolerances. - Evaluating new solution: cost 284, meets the tolerances. - Evaluating new solution: cost 282, meets the tolerances. - Evaluating new solution: cost 285, does not meet the tolerances. - Evaluating new solution: cost 277, meets the tolerances. - Updated best found solution, cost: 280 - Updated best found solution, cost: 277 - Evaluating new solution: cost 272, meets the tolerances. - Evaluating new solution: cost 266, meets the tolerances. - Evaluating new solution: cost 269, meets the tolerances. - Evaluating new solution: cost 271, does not meet the tolerances. - Evaluating new solution: cost 274, meets the tolerances. - Evaluating new solution: cost 275, meets the tolerances. - Evaluating new solution: cost 274, does not meet the tolerances. - Evaluating new solution: cost 275, meets the tolerances. - Evaluating new solution: cost 276, does not meet the tolerances. - Evaluating new solution: cost 271, meets the tolerances. - Evaluating new solution: cost 267, meets the tolerances. - Evaluating new solution: cost 270, meets the tolerances. - Evaluating new solution: cost 272, meets the tolerances. - Evaluating new solution: cost 264, does not meet the tolerances. - Evaluating new solution: cost 265, does not meet the tolerances. - Evaluating new solution: cost 269, meets the tolerances. - Evaluating new solution: cost 270, meets the tolerances. - Evaluating new solution: cost 269, meets the tolerances. - Evaluating new solution: cost 276, meets the tolerances. - Evaluating new solution: cost 274, meets the tolerances. - Updated best found solution, cost: 272 - Updated best found solution, cost: 266 + Optimization has finished. - Neighborhood search complete. - Maximum number of iterations completed. + Fixed-point implementation that met the tolerances found. - Total cost: 266 - Maximum absolute difference: 0.087035 - Use the explore method of the result to explore the implementation.
Используйте explore метод OptimizationResult объект, result, чтобы запустить Данные моделирования Inspector и исследовать проект, содержащий наименьшее общее количество бит с сохранением числовых допусков, заданных в opt объект.
explore(result);
Можно вернуть модель обратно в ее исходное состояние, используя revert метод OptimizationResult объект.
revert(result);
