Control Data and Function Placement in Memory by Inserting Pragmas

For some applications, you can use pragmas and other code decorations to control the placement of data (global variables) and function definitions in memory. For example, a linker configuration file can define named sections in a SECTIONS directive and map each section to a range of memory addresses. In the C code, you include pragmas that assign global variables and functions to these named sections and, by extension, to the memory ranges. By controlling memory placement, you can:

Generate code that is more efficient for your hardware.
Modularize your application code for easier maintenance and modification later in the development process and after deployment.

With Embedded Coder^® and memory sections, you can:

Apply default pragmas or other decorations to categories of model data and entry-point functions. To configure these defaults, use the Code Mappings editor. For example, you can:
- Apply a default pragma to internal data, which includes block states that the code generator cannot eliminate through optimizations. You can apply a different default pragma to constant parameters, such as nonscalar parameters that the generated code must store in memory.
- Apply a default pragma to categories of generated functions, including entry-point functions such as model_step.
Override the default pragmas for individual data items such as block parameters, states, and signals. To do so, create your own storage class.
Override the default pragmas for individual functions that correspond to atomic subsystems, which you can configure to appear in the generated code as separate functions with separate data. Use the subsystem parameters dialog box.

Insert Pragmas by Using Memory Sections

In this example, you configure the default memory placement for all of the data and functions of the algorithm represented by the example model rtwdemo_roll. Then, for some signal data, you override the default placement.

Explore Example Model and Inspect Default Generated Code

Open the example model.
```
open_system('rtwdemo_roll')
```
The model is configured to generate efficient production code. For example, the configuration parameter Default parameter behavior is set to Inlined.
In the Apps gallery, under Code generation, click Embedded Coder. The C Code tab opens. Generate code from the model.

In the code generation report, inspect the file rtwdemo_roll.h. The file defines structure types that represent data that the algorithm needs. For example, the file defines a structure type that represents block states such as the states of Discrete-Time Integrator blocks.

/* Block signals and states (default storage) for system '<Root>' */
typedef struct {
  real32_T FixPtUnitDelay1_DSTATE;     /* '<S7>/FixPt Unit Delay1' */
  real32_T Integrator_DSTATE;          /* '<S1>/Integrator' */
  int8_T Integrator_PrevResetState;    /* '<S1>/Integrator' */
} DW;

The file also declares entry-point functions for the model.

/* Model entry point functions */
extern void rtwdemo_roll_initialize(void);
extern void rtwdemo_roll_step(void);

Inspect rtwdemo_roll.c. This file defines global structure variables to store the data. The file also defines the functions.

In this example, assume your linker configuration file defines named sections MYALGORITHM_DATA and MYALGORITHM_CODE in a SECTIONS directive. You can configure the model so that the generated code includes pragmas, placing the memory allocated for the data and functions in these named sections.

For a global variable named myVar, the pragma syntax is:
```
#pragma SEC_MYALGORITHM_DATA("myVar")

double myVar;
```
For a function named myFunction, the pragma syntax is the same except for the section name:
```
#pragma SEC_MYALGORITHM_CODE("myFunction")

void myFunction(void)
```

Create Memory Sections

In this example, you use two pragmas with different syntaxes, so you must create two memory sections.

Open the Embedded Coder app. On the C Code tab, select Code Interface > Embedded Coder Dictionary.
In the Embedded Coder Dictionary dialog box, select the Memory Sections tab and click the Add button.
For the new memory section, set these options:
- Name to MYALGORITHM_DATA.
- Statements Surround to Each variable.
- Pre Statement to #pragma SEC_MYALGORITHM_DATA("$N"). The token $N stands for the name of each variable that uses the memory section.
Create another, similar memory section that corresponds to MYALGORITHM_CODE.

Configure Default Pragmas for Data and Functions

On the C Code tab, select Code Interface > Default Code Mappings or Code Interface > Individual Element Code Mappings
In the Data Defaults tab, expand Inports and Outports, Signals and Parameters.
In the table, select the Inports row.
In the Property Inspector, set Memory Section to MYALGORITHM_DATA.
For the other rows in the table, set Memory Section to MYALGORITHM_DATA.
Under Function Defaults, for each row in the table, set Memory Section to MYALGORITHM_CODE.
In your current folder, delete the existing slprj folder.
Configure the model to generate only code. Select the configuration parameter Configuration Parameters > Generate code only.
Click Generate Code.

Now, the rtwdemo_roll.c file applies the pragmas to the definitions of the structure variables and the functions. For each category of data and functions that you configured in the Code Mappings editor, the code applies a pragma. For example, the code applies the MYALGORITHM_DATA pragma to each of the structures that store block states, root-level inputs, and root-level outputs.

/* Block signals and states (default storage) */
#pragma SEC_MYALGORITHM_DATA("rtDW")

DW rtDW;

/* External inputs (root inport signals with default storage) */
#pragma SEC_MYALGORITHM_DATA("rtU")

ExtU rtU;

/* External outputs (root outports fed by signals with default storage) */
#pragma SEC_MYALGORITHM_DATA("rtY")

ExtY rtY;

Retain Default Memory Section After Applying a Default Storage Class or Function Template

In the Code Mappings editor, you can use the Storage Class and Function Customization Template columns to control the default appearance of data and functions in the generated code. When you use these columns to apply a setting other than Default, the Code Mappings editor discards the memory section that you applied in the Property Inspector. To retain the memory section, use the Embedded Coder Dictionary to create a storage class or function template, then apply the memory section to that storage class or function template.

In this example, you configure the nonparameter data of the model, such as signals and states, to appear in the same structure by creating a storage class. To retain the MYALGORITHM_DATA memory section, you apply the memory section to the storage class.

In the Embedded Coder Dictionary for the model, select the Storage Classes tab and click the Add button.
For the new storage class, set:
- Name to STRUCT_DATA.
- Storage Type to Structured.
- Memory Section to MYALGORITHM_DATA.
In the Code Mappings editor, under Data Defaults, in the Storage Class column, select STRUCT_DATA for these rows:
- Inports
- Outports
- Signals, states and internal data
Generate code from the model.
Inspect rtwdemo_roll.c. Now, the file defines a single structure variable that contains the nonparameter data, applying the pragma to that variable.
```
/* Storage class 'STRUCT_DATA' */
#pragma SEC_MYALGORITHM_DATA("STRUCT_DATA_rtwdemo_roll")

rtwdemo_roll_STRUCT_DATA STRUCT_DATA_rtwdemo_roll;
```

Incorporate Default Memory Section into a Storage Class for Individual Mapping

To override the default storage classes that you specify in Code Mappings - C > Data Defaults, apply a storage class directly to a data item by using the Code Mappings editor. Directly applying a storage class other than Auto or Model default bypasses the default memory section that you specify in Data Defaults. To retain the memory section, create a storage class in the Embedded Coder Dictionary and apply the desired memory section to it. Then, apply the storage class to individual data items in the Code Mappings editor. Other models cannot access the storage class and memory section that you define in the Embedded Coder Dictionary. To share the storage class and memory section sections among other models, store the Embedded Coder Dictionary in a Simulink Data Dictionary data (sldd) outside of your model. Then, share the dictionary between the target models. For more information, see Migrate Definitions from Model File to Shared Data Dictionary.

In rtwdemo_roll, in the BasicRollMode subsystem, the three Gain blocks represent the parameters of a PID control algorithm. In the Retain Default Memory Section After Applying a Default Storage Class or Function Template section, configure the nonparameter data of the model, such as signals and states, to appear in the same structure by applying the default storage class STRUCT_DATA. In this example, you configure the output signals of the Gain blocks so that the generated code allocates memory for them in the MYALGORITHM_DATA section but does not appear in the default storage class structure. Define a new storage class myStore in the Embedded Coder Dictionary and apply the desired memory section MYALGORITHM_DATA to it. Then, directly apply the storage class to the output signals of the Gain blocks.

In the Embedded Coder Dictionary of the model, select the Storage Classes tab and click the Add button.
For the new storage class, set:
- Name to myStore.
- Storage Type to Structured.
- Memory Section to MYALGORITHM_DATA.
In the model, navigate into the BasicRollMode subsystem. The signals of the subsystem are not automatically populated into the Code Mappings editor. You need to manually add signals by pausing on the ellipsis that appears above or below a signal line to open the action bar. Click the Add Signal button. The button is also available in the Code Mappings editor on the Signals/States tab.
After you add the output signals of the Gain blocks, the signal rows appear in the Code Mappings -C > Signals/States tab. Open the Property Inspector by selecting the signal rows. In the Code section, set these properties:
- Storage Class to myStore.
- Identifier to the block names.
Generate code from the model.
Inspect the generated file rtwdemo_roll.c. The file defines a structure variable myStore_rtwdemo_roll and applies the pragma to the variable.
```
/* Storage class 'myStore' */
#pragma SEC_MYALGORITHM_DATA("myStore_rtwdemo_roll")

rtwdemo_roll_myStore myStore_rtwdemo_roll;
```
Inspect the generated file rtwdemo_roll.h. The structure variable contains the output signals of the Gain blocks. The output signals are now in a different structure but stored in the same MYALGORITHM_DATA memory section.

/* Storage class 'myStore', for system '<Root>' */
typedef struct {
  real32_T DispGain;                   /* '<S1>/DispGain' */
  real32_T RateGain;                   /* '<S1>/RateGain' */
  real32_T IntGain;                    /* '<S1>/IntGain' */
} rtwdemo_roll_myStore;

Configure Pragma to Surround Groups of Definitions

If your build toolchain requires that a pragma or other decoration surround multiple definitions of variables or functions at once, in an Embedded Coder Dictionary or the Custom Storage Class Designer, set Statements surround to Group of variables (the default in the Custom Storage Class Designer).

Override Default Memory Placement for Individual Data Elements

After you configure memory section defaults in the Code Mappings editor (see Configure Default C Code Generation for Categories of Data Elements and Functions), to override these default settings for individual data elements (signals, parameters, and states), create a storage class and any required memory sections by using the Embedded Coder Dictionary. For more information see, Choose Where to Create and Store Memory Section Definition. When you create the storage class, set the Memory section property to the appropriate memory section. Then, use the Code Mappings editor to apply the storage class to individual data elements.

Choose Where to Create and Store Memory Section Definition

To define a memory section, you must choose where to create it: in an Embedded Coder Dictionary or in a Simulink Shared Dictionary.

If you need to use the memory section only in the Code Mappings editor, define the memory section in an Embedded Coder Dictionary.
If you need to use the memory section only in the Code Mappings editor and want to share it with other models, define the memory section in a Simulink® data dictionary (sldd). For more information, see Share Embedded Coder Dictionary Definition Between Models.
If you need to use the memory section outside of the Code Mappings editor, define the memory section in a package. For example, define memory sections in a package to configure memory sections of an atomic Subsystem. For more information, see Override Memory Section for Atomic Subsystem.

Share Memory Section Definition Between Models

If you define the memory section in the Embedded Coder Dictionary of a model, you cannot use the memory section in other models. To share the memory section, migrate the definition to a Simulink^® data dictionary (sldd). Then, share the dictionary between the target models. For more information, see Migrate Definitions from Model File to Shared Data Dictionary.
If you define the memory section in a package by using the Custom Storage Class Designer, any model can use the memory section. For more information, see Create Storage Class by Using Custom Storage Class Designer. Add the folder containing the package folder to the MATLAB^® path (see What Is the MATLAB Search Path?).

Override Default Memory Placement for Subsystem Functions and Data

When you use atomic subsystems to partition the generated code into functions (see Generate Subsystem Code as Separate Function and Files), you can apply different memory sections to the functions and data of each subsystem. You can also specify that a subsystem not use a memory section.

To use different memory sections to override the model-level defaults that you set in the Code Mappings editor, see Override Memory Section for Atomic Subsystem.
To specify that a subsystem not use a memory section (in other words, to prevent the subsystem from inheriting the model-level defaults), see Specify That Atomic Subsystem Does Not Use a Memory Section.

Override Memory Section for Atomic Subsystem

The memory sections that you specify for a subsystem override the model-level defaults that you set in the Code Mappings editor. Use this technique to aggregate the data and instruction code for subroutines or subcomponents (represented by subsystems) into different regions of memory. To apply a memory section directly to an atomic subsystem, define the memory section in a package by using the Custom Storage Class Designer. You cannot use a memory section that you define in an Embedded Coder Dictionary. Then, load the package into the model and configure the subsystem block parameters to specify the memory section.

To create the memory section:

In your current folder, create a folder named +myPackage. The folder defines a package named myPackage. For more information, see Create Data Class Package.
To make the package available outside of your current folder, optionally, you can add the folder containing the +myPackage folder to the MATLAB path.
Open the Custom Storage Class designer.
```
cscdesigner('myPackage');
```
In the Custom Storage Class Designer, select the Memory Section tab.
Click New.
For the new memory section, set these options:
- Name to MYALGORITHM_DATA.
- Statements surround to Each variable.
- Pre statement to #pragma SEC_MYALGORITHM_DATA("$N").
Click Apply and Save.
Set your current folder to the folder that contains the +myPackage folder.

To apply the memory section in an atomic subsystem:

Configure the Embedded Coder Dictionary of the model to load the target package as described in Refer to Code Generation Definitions in a Package.
To configure the target subsystem to specify the memory section, open the subsystem parameters dialog box. On the Code Generation tab:
- Set Function packaging to Nonreusable function or Reusable function (for reentrant code).
- If you set Function packaging to Nonreusable function, to enable configuration of memory sections for the subsystem data, select Function with separate data. If you do not select Function with separate data, the subsystem data inherits memory sections from the model or, if applicable, a parent subsystem.
- To apply the MYALGORITHM_DATA memory section directly to the subsystem functions and data, use these block parameters:
  - Memory section for initialize/terminate functions
  - Memory section for execution functions
  - Memory section for constants
  - Memory section for internal data
  - Memory section for parameters

Specify That Atomic Subsystem Does Not Use a Memory Section

By default, subsystem functions and data inherit the model-level memory sections that you specify for relevant function and data categories in the Code Mappings editor. For example, if you specify a function customization template for the Execution category, and that template carries a memory section, the memory section applies to subsystem execution functions as well as model entry-point execution functions.

To specify that a subsystem does not use a memory section, open the subsystem parameters dialog box. On the Code Generation tab, set these parameters to Default:

Memory section for initialize/terminate functions
Memory section for execution functions
Memory section for constants
Memory section for internal data
Memory section for parameters

With these settings, the subsystem does not use a memory section for the data or functions that each parameter represents.

Limitations and Other Considerations

The settings that you specify for an atomic, nonreusable subsystem with separate data apply only to the data and functions of that subsystem, not to data in similarly configured child subsystems. Atomic, nonreusable child subsystems with separate data can inherit memory sections from the containing model, not from the parent subsystem.
If you use Build This Subsystem or Build Selected Subsystem to generate code for an atomic subsystem that specifies memory sections, the code generator ignores the subsystem-level specifications and uses the model-level specifications instead. For information about building subsystems, see Generate Code and Executables for Individual Subsystems.

Share Memory Section Between Packages (Package Memory Sections Only)

Packages can access and use memory sections that are defined in other packages, including custom packages and built-in packages such as Simulink. Only one copy of the memory section exists, in the package that defines it. Other packages refer to the memory section by pointing to it in its original location. Changes to the memory section, including changes to a built-in memory section in later MathWorks^® product releases, are immediately available in every referencing package.

To configure a package to refer to a memory section that is defined in another package:

Open the Custom Storage Class Designer. At the command prompt, enter cscdesigner.
Select the Memory Section tab.
Use Select Package to select the package in which you want to reference a class or section defined in some other package.
In the Memory section definitions pane, select the existing definition below which you want to insert the reference.
Click New Reference.
A new reference with a default name and properties appears below the previously selected definition. The new reference is selected, and a Reference tab appears that shows the reference's initial properties.
Use the Name field to enter a name for the new reference. The name must be unique in the importing package, but can duplicate the name in the source package.
Set Refer to memory section in package to specify the package that contains the memory section that you want to reference.
Set Memory section to reference to specify the memory section to be referenced.
Click OK or Apply to save the changes to memory. To save the changes permanently, click Save.

Control Appearance of Memory Section Drop-Down List (Package Memory Sections Only)

When you apply a package memory section, you select the memory section from a drop-down list. To control the order of the memory sections in the list, in the Custom Storage Class Designer, use the Up and Down buttons. The order of memory sections in drop-down lists matches the order in the Custom Storage Class Designer.

Protect Definitions of Package Memory Sections (Package Memory Sections Only)

When you click Save in the Custom Storage Class Designer, the Designer saves memory section and custom storage class definitions into the csc_registration.m file in the package folder. To determine the location of this file, in the Custom Storage Class Designer, inspect the value of Filename.

You can prevent changes to the memory section definitions of an entire package by converting the csc_registration.m file from a MATLAB file to a P-file. Use the pcode function.

A best practice is to keep csc_registration.m and csc_registration.p in your package folder. That way, if you need to modify the memory sections by using the Designer, you can delete csc_registration.p and later regenerate it after you finish the modifications. Because the P-coded version of the file takes precedence, while both files exist in the package, the memory sections are protected.

Limitations

The code generator does not apply memory sections to data that uses these built-in storage classes:
- ExportedGlobal
- ImportedExtern
- ImportedExternPointer
In the Custom Storage Class Designer, the storage type qualifier that you specify for a memory section by using the Qualifier text box affects only data items that use a storage class setting other than these built-in storage classes:
- ExportedGlobal
- ImportedExtern
- ImportedExternPointer
The code generator omits the qualifier from other data categories.
When you create a subsystem in a custom block library, you cannot specify memory sections for the subsystem definition in the library. Instead, specify memory sections for the subsystem instances that you place in your models.

Insert Pragmas for Functions and Data in Generated Code

Open Script

This example shows how to insert pragmas in generated code to control the placement of data and functions in memory. To configure memory placement for subsystem functions, use the memory sections that you define in a package. This example illustrates how to use memory sections defined in a package to insert pragmas for functions and data in the generated code.

Explore Example Model

Open the example model.

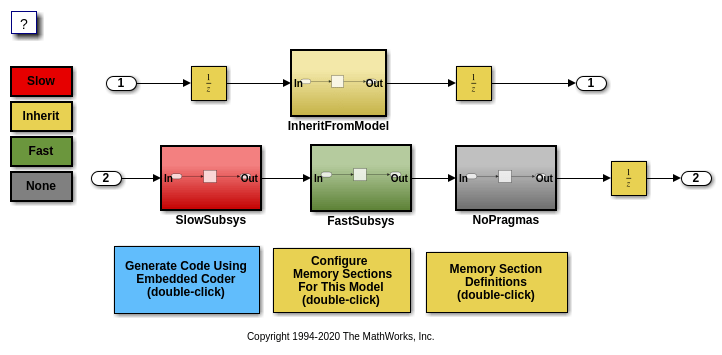

open_system('rtwdemo_memsec')

To view the memory sections in the ECoderDemos package, click the Memory Section Definitions button in the model and then select the Memory Sections tab.
To configure the memory sections for functions and data, click the Configure Memory Sections For This Model button. In the Code Mappings editor, select the appropriate row, and then specify memory sections in the Property Inspector.
The model-level settings are the default settings for atomic subsystems. Open the subsystem parameter drop-down lists to see the memory section settings for each of the atomic subsystems in the model. You can override the default model-level setting by configuring the subsystem block parameters.
To generate code, click the Generate Code Using Embedded Coder button. A code generation report opens automatically. Inspect the data and function definitions in the .c files and observe how the generated pragmas correspond to the specified memory sections.
