% Create 1024 points between [0,2*pi)
stepSize = pi/512;
thRadDbl = 0:stepSize:(2*pi - stepSize);
thRadFxp = sfi(thRadDbl,12);    % signed, 12-bit fixed-point
cosThRef = cos(double(thRadFxp));   % reference results

% Use 12-bit quantized inputs and vary the number
% of iterations from 2 to 10.
% Compare the  fixed-point CORDIC results to the
% double-precision trig function results.
for niters = 2:2:10
    cdcCosTh  = cordiccos(thRadFxp,niters);
    errCdcRef = cosThRef - double(cdcCosTh);
end

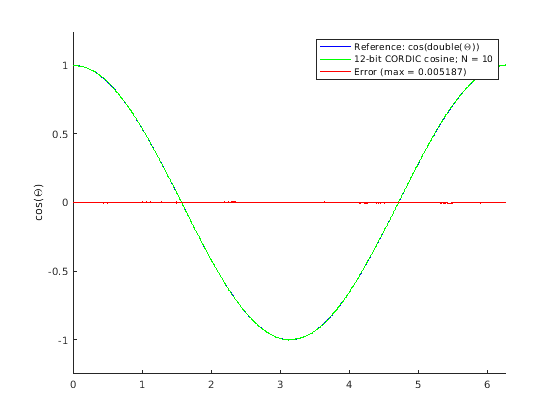

figure
hold on
axis([0 2*pi -1.25 1.25]);
    plot(thRadFxp,cosThRef,'b');
    plot(thRadFxp,cdcCosTh,'g');
    plot(thRadFxp,errCdcRef,'r');
    ylabel('cos(\Theta)');
    gca.XTick = 0:pi/2:2*pi;
    gca.XTickLabel = {'0','pi/2','pi','3*pi/2','2*pi'};
    gca.YTick = -1:0.5:1;
    gca.YTickLabel = {'-1.0','-0.5','0','0.5','1.0'};
    ref_str = 'Reference: cos(double(\Theta))';
    cdc_str = sprintf('12-bit CORDIC cosine; N = %d',niters);
    err_str = sprintf('Error (max = %f)', max(abs(errCdcRef)));
    legend(ref_str,cdc_str,err_str);
