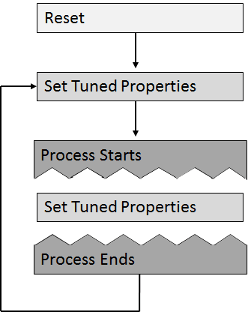

classdef badPlugin < audioPlugin
    properties
        Gain = 0.5;
    end
    properties (Constant)
        PluginInterface = audioPluginInterface(audioPluginParameter('Gain'));
    end
    methods
        function out = process(plugin,in)

            L = plugin.Gain*in(:,1);

            drawnow

            R = plugin.Gain*in(:,2);

            out = [L,R];
        end
        function set.Gain(plugin,val)
            plugin.Gain = val;
        end
    end
end

classdef  pluginWithMATLABOnlyFeatures < audioPlugin
    properties
        Threshold = -10;
    end
    properties (Access = private)
        aCompressor
        aScope
        SamplesPerFrame = 1;
    end
    properties (Constant)
        PluginInterface = audioPluginInterface( ...
            audioPluginParameter('Threshold','Mapping',{'lin',-60,20}));
    end
    methods
        function plugin = pluginWithMATLABOnlyFeatures
            plugin.aCompressor = compressor;
            setup(plugin.aCompressor,[0,0])
        end
        function out = process(plugin,in)
            out = plugin.aCompressor(in);

            % The contents of this if-statement are ignored during plugin
            % generation.
            if coder.target('MATLAB')
                if ~isempty(plugin.aScope) && isvalid(plugin.aScope)
                    numSamples = size(in,1);

                    % The time scope object is not enabled for
                    % variable-size signals. Call release if the samples
                    % per frame is changed.
                    % Because this code is intended for use in MATLAB only,
                    % it is okay to call release on the time scope object.
                    % Do not call release on a System object in generated
                    % code.
                    if plugin.SamplesPerFrame(1) ~= numSamples
                        release(plugin.aScope)
                        plugin.SamplesPerFrame = numSamples;
                    end

                    power = 20*log10(mean(var(in)))*ones(numSamples,1);
                    adjustedPower = 20*log10(mean(var(out)))*ones(numSamples,1);
                    plugin.aScope([power,adjustedPower]);
                end
            end
        end
        function reset(plugin)
            fs = getSampleRate(plugin);
            plugin.aCompressor.SampleRate = fs;
            reset(plugin.aCompressor)

            % The contents of this if-statement are ignored during plugin
            % genderation.
            if coder.target('MATLAB')
                if ~isempty(plugin.aScope)
                    % Because this code is intended for use in MATLAB only,
                    % it is okay to call release on the time scope object.
                    % Do not call release on a System object in generated
                    % code.
                    release(plugin.aScope)
                    plugin.aScope.SampleRate = fs;
                    plugin.aScope.BufferLength = 2*fs;
                end
            end
        end
        function visualize(plugin)
            % Visualization function. This function is public in the MATLAB
            % environment. Because the plugin does not call this function
            % directly, the function is not part of the code generated by
            % generateAudioPlugin.

            % Create a time scope object for visualization in the MATLAB
            % environment.
            plugin.aScope = timescope( ...
                'SampleRate',getSampleRate(plugin), ...
                'TimeSpan',1, ...
                'YLimits',[-40,0], ...
                'BufferLength',2*getSampleRate(plugin), ...
                'TimeSpanOverrunAction','Scroll', ...
                'YLabel','Power (dB)');
            show(plugin.aScope)
        end
        function set.Threshold(plugin,val)
            plugin.Threshold = val;
            plugin.aCompressor.Threshold = val;
        end
    end
end

classdef compositePlugin < audioPlugin
    properties
        PhaserQ  = 1.6;
        EchoGain = 0.5;
    end
    properties (Access = private)
        aEcho
        aPhaser
    end
    properties (Constant)
        PluginInterface = audioPluginInterface( ...
            audioPluginParameter('PhaserQ', ...
                'DisplayName','Phaser Q', ...
                'Mapping',{'lin',0.5, 25}), ...
            audioPluginParameter('EchoGain', ...
                'DisplayName','Gain'));
    end
    methods
        function plugin = compositePlugin
            % Construct your component plugins in the composite plugin's
            % constructor.
            plugin.aPhaser = audiopluginexample.Phaser;
            plugin.aEcho   = audiopluginexample.Echo;
        end
        function out = process(plugin,in)
            % Call the process method of your component plugins inside the
            % call to the process method of your composite plugin.
            x = process(plugin.aPhaser,in);
            y = process(plugin.aEcho,x);
            out = y;
        end
        function reset(plugin)
            % Use the setSampleRate method to set the sample rate of
            % component plugins and pass the call to reset down.
            fs = getSampleRate(plugin);

            setSampleRate(plugin.aPhaser, fs)
            setSampleRate(plugin.aEcho, fs)

            reset(plugin.aPhaser)
            reset(plugin.aEcho);
        end
        % Use the set method of your properties to pass down property
        % values to your component plugins.
        function set.PhaserQ(plugin,val)
            plugin.PhaserQ = val;
            plugin.aPhaser.QualityFactor = val;
        end
        function set.EchoGain(plugin,val)
            plugin.EchoGain = val;
            plugin.aEcho.Gain = val;
        end
    end
end

classdef compositePluginWithSystemObjects < audioPlugin
    properties
        CrossoverFrequency  = 100;
        CompressorThreshold = -40;
    end
    properties (Access = private)
        aCrossoverFilter
        aCompressor
    end
    properties (Constant)
        PluginInterface = audioPluginInterface( ...
            audioPluginParameter('CrossoverFrequency', ...
                'DisplayName','Crossover Frequency', ...
                'Mapping',{'lin',50, 200}), ...
            audioPluginParameter('CompressorThreshold', ...
                'DisplayName','Compressor Threshold', ...
                'Mapping',{'lin',-100,0}));
    end
    methods
        function plugin = compositePluginWithSystemObjects
            % Construct your component System objects within the composite
            % plugin's constructor. Call setup immediately after
            % construction.
            %
            % The audio plugin API requires plugins to declare the number
            % of input and output channels in the plugin interface. This
            % plugin uses the default 2-in 2-out configuration. Call setup
            % with a sample input that has the same number of channels as
            % defined in the plugin interface.
            %
            sampleInput = zeros(1,2);

            plugin.aCrossoverFilter = crossoverFilter;
            setup(plugin.aCrossoverFilter,sampleInput)

            plugin.aCompressor = compressor;
            setup(plugin.aCompressor,sampleInput)
        end
        function out = process(plugin,in)
            % Call your component System objects inside the call to
            % process of your composite plugin.
            [band1,band2] = plugin.aCrossoverFilter(in);
            band1Compressed = plugin.aCompressor(band1);
            out = band1Compressed + band2;
        end
        function reset(plugin)
            % Set the sample rate properties of your component System
            % objects.
            fs = getSampleRate(plugin);

            plugin.aCrossoverFilter.SampleRate = fs;
            plugin.aCompressor.SampleRate = fs;

            reset(plugin.aCrossoverFilter)
            reset(plugin.aCompressor);
        end
        % Use the set method of your properties to pass down property
        % values to your component System objects.
        function set.CrossoverFrequency(plugin,val)
            plugin.CrossoverFrequency = val;
            plugin.aCrossoverFilter.CrossoverFrequencies = val;
        end
        function set.CompressorThreshold(plugin,val)
            plugin.CompressorThreshold = val;
            plugin.aCompressor.Threshold = val;
        end
    end
end

classdef highpassFilter < audioPlugin
    %-----------------------------------------------------------------------
    % Public Properties - End user interacts with these
    %-----------------------------------------------------------------------
    properties
        Cutoff = 20;
    end

    %-----------------------------------------------------------------------
    % Private Properties - Used for internal storage
    %-----------------------------------------------------------------------
    properties (Access = private)
        State = zeros(2);
        B     = zeros(1,3);
        A     = zeros(1,3);
    end

    %-----------------------------------------------------------------------
    % Constant Properties - Used to define plugin interface
    %-----------------------------------------------------------------------
    properties (Constant)
        PluginInterface = audioPluginInterface( ...
            audioPluginParameter('Cutoff', ...
            'Label','Hz', ...
            'Mapping',{'log',20,2000}));
    end

    methods
        %-------------------------------------------------------------------
        % Main processing function
        %-------------------------------------------------------------------
        function y = process(plugin,x)
            [y,plugin.State] = filter(plugin.B,plugin.A,x,plugin.State);
        end

        %-------------------------------------------------------------------
        % Set Method
        %-------------------------------------------------------------------
        function set.Cutoff(plugin,val)
            plugin.Cutoff = val;
            [plugin.B,plugin.A] = highpassCoeffs(plugin,val,getSampleRate(plugin)); % <<<< warning occurs here
        end

        %-------------------------------------------------------------------
        % Reset Method
        %-------------------------------------------------------------------
        function reset(plugin)
            plugin.State = zeros(2);
            [plugin.B,plugin.A] = highpassCoeffs(plugin,plugin.Cutoff,getSampleRate(plugin));
        end
    end
    methods (Access = private)
        %-------------------------------------------------------------------
        % Calculate Filter Coefficients
        %-------------------------------------------------------------------
        function [B,A] = highpassCoeffs(~,fc,fs)
            w0    = 2*pi*fc/fs;
            alpha = sin(w0)/sqrt(2);
            cosw0 = cos(w0);
            norm  = 1/(1+alpha);
            B     = (1 + cosw0)*norm * [.5 -1 .5];
            A     = [1 -2*cosw0*norm (1 - alpha)*norm];
        end
    end
end

classdef BrokenAnalyticSignalTransformer < audioPlugin
    properties (Access = private)
        Transformer
    end
    properties (Constant)
        PluginInterface = audioPluginInterface('InputChannels',1,'OutputChannels',2);
    end
    methods
        function plugin = BrokenAnalyticSignalTransformer
            plugin.Transformer = dsp.AnalyticSignal;
        end
        function out = process(plugin,in)
                analyticSignal = plugin.Transformer(in);
                realPart = real(analyticSignal);
                imaginaryPart = imag(analyticSignal);
                out = [realPart,imaginaryPart];
        end
    end
end

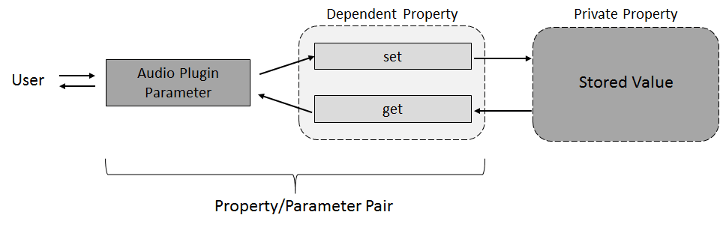

classdef pluginWithEnumMapping < audioPlugin
    properties (Dependent)
        Mode = '+6 dB';
    end
    properties (Access = private)
        pMode = 1; % '+6 dB'
    end
    properties (Constant)
        PluginInterface = audioPluginInterface(...
            audioPluginParameter('Mode',...
                'Mapping',{'enum','+6 dB','-6 dB','silence','white noise'}));
    end
    methods
        function out = process(plugin,in)
            switch (plugin.pMode)
                case 1
                    out = in * 2;
                case 2
                    out = in / 2;
                case 3
                    out = zeros(size(in));
                otherwise % case 4
                    out = rand(size(in)) - 0.5;
            end
        end
        function set.Mode(plugin,val)
            validatestring(val,{'+6 dB','-6 dB','silence','white noise'},'set.Mode','Mode');
            switch val
                case '+6 dB'
                    plugin.pMode = 1;
                case '-6 dB'
                    plugin.pMode = 2;
                case 'silence'
                    plugin.pMode = 3;
                otherwise % 'white noise'
                    plugin.pMode = 4;
            end
        end
        function out = get.Mode(plugin)
            switch plugin.pMode
                case 1
                    out = '+6 dB';
                case 2
                    out = '-6 dB';
                case 3
                    out = 'silence';
                otherwise % case 4
                    out = 'white noise';
            end
        end
    end
end
