classdef CustomEntityStorageBlockIteration < matlab.DiscreteEventSystem

    % A custom entity storage block with one input port and one storage element.

    % Nontunable properties
    properties (Nontunable)
        % Capacity
        Capacity = 5;
    end
    % Create the storage element with one input and one storage.
    methods (Access=protected)

        function num = getNumInputsImpl(obj)
            num = 1;
        end

        function num = getNumOutputsImpl(obj)
            num = 0;
        end

        function entityTypes = getEntityTypesImpl(obj)
            entityType1 = obj.entityType('Wheel');
            entityTypes = entityType1;
        end

        function [inputTypes,outputTypes] = getEntityPortsImpl(obj)
            inputTypes = {'Wheel'};
            outputTypes={};

        end

        function [storageSpecs, I, O] = getEntityStorageImpl(obj)
            storageSpecs = obj.queuePriority('Wheel',obj.Capacity, 'Diameter','ascending');
            I = 1;
            O = [];

        end

    end
    % Entity entry event action
    methods

        function [entity, event] = WheelEntry(obj,storage,entity, source)

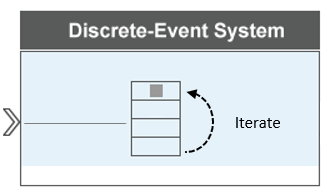

            % Entity entry invokes an iterate event.
            event = obj.eventIterate(1, '');
        end

        % The itarate event action
        function [entity,event,next] = WheelIterate(obj,storage,entity,tag,cur)

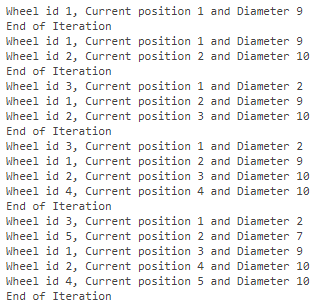

            % Display wheel id, position in the storage, and diameter.
            coder.extrinsic('fprintf');
            fprintf('Wheel id %d, Current position %d, Diameter %d\n', ...
                entity.sys.id, cur.position, entity.data.Diameter);
            if cur.size == cur.position
                fprintf('End of Iteration \n')
            end
            next = true;
            event=[];
        end

    end

end
